The recommended PCB layout for the WM8804GEDS/RV is to keep the analog and digital grounds separate, and to use a solid ground plane to minimize noise and EMI. Additionally, it is recommended to place the device near the audio connectors to minimize signal degradation.
The WM8804GEDS/RV can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, such as the sample rate, bit depth, and channel count. The specific configuration will depend on the application and the desired audio format.
The maximum power consumption of the WM8804GEDS/RV is approximately 250mW, depending on the operating mode and the clock frequency. The device has several power-down modes to reduce power consumption when not in use.
To troubleshoot issues with the WM8804GEDS/RV, first check the power supply and clock signals to ensure they are within the recommended specifications. Then, use a logic analyzer or oscilloscope to verify the digital signals and audio data. If the issue persists, consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the WM8804GEDS/RV is designed to meet or exceed various audio standards, including IEC 60958, AES3, and S/PDIF. However, it is the responsibility of the designer to ensure that the final product meets the required standards and specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8804GEDS/RV Overview

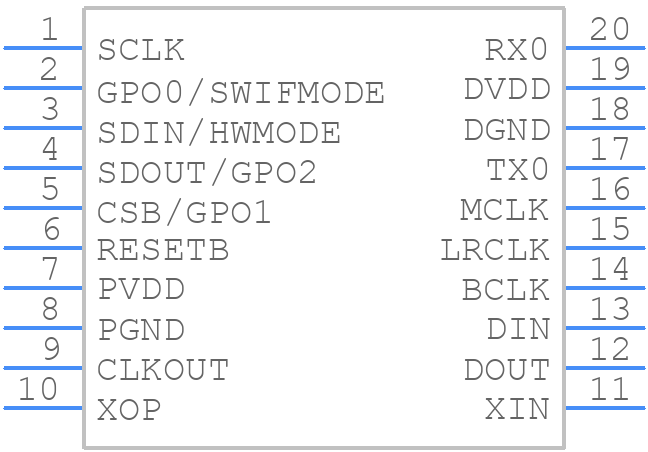

Use the download button to access the WM8804GEDS/RV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM880,
or try a keyword search, such as Other Consumer ICs
