7.20 X 5.30 MM, 1.75 MM HEIGHT, LEAD FREE, MO-150AE, SSOP-20
HTS Code:
8542.39.00.60
Manufacturer:
Wolfson Microelectronics
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDSO-G20
Length:
7.2 mm
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Seated Height-Max:
2 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.7 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
5.3 mm
WM8804GEDS/RV Frequently Asked Questions (FAQs)
Wolfson Microelectronics provides a recommended PCB layout guide in their application note AN-0014, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The WM8804GEDS/RV can be configured for different audio formats using the device's control registers. Wolfson Microelectronics provides a detailed programming guide in their datasheet, which includes register settings and configuration examples for different audio formats.
The WM8804GEDS/RV supports clock frequencies up to 192 kHz, but the maximum clock frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
Wolfson Microelectronics provides a troubleshooting guide in their application note AN-0015, which includes common issues, symptoms, and solutions for the WM8804GEDS/RV. Additionally, engineers can use oscilloscopes and logic analyzers to debug and analyze the device's behavior.
The WM8804GEDS/RV is designed to operate from a 1.8V or 3.3V power supply, but the device's performance and power consumption may vary depending on the voltage supply. Engineers should consult the datasheet and application notes for specific guidance on voltage supply selection and power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8804GEDS/RV Overview

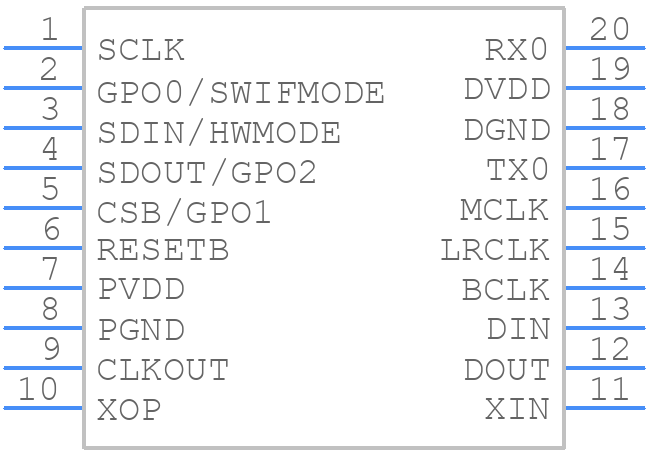

Use the download button to access the WM8804GEDS/RV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM880,
or try a keyword search, such as Other Consumer ICs
