4 X 4 MM, 0.75 MM HEIGHT, 0.40 MM PITCH, LEAD FREE, PLASTIC, QFN-32
HTS Code:
8542.39.00.60
Factory Lead Time:
19 Weeks
Manufacturer:
Cirrus Logic
Additional Feature:
IT ALSO REQUIRES ANALOG SUPPLY RANGE 1.71 TO 2 VOLT
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
S-PQCC-N32
Length:
4 mm
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.16SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
1.98 V
Supply Voltage-Min (Vsup):
0.95 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
4 mm
WM8918CGEFL/V Frequently Asked Questions (FAQs)
The recommended layout and placement for the WM8918CGEFL/V can be found in the Cirrus Logic application note AN215, which provides guidelines for PCB layout, component placement, and thermal management.
To optimize the WM8918CGEFL/V for low power consumption, ensure that the device is operated in the correct power mode (e.g., low-power mode), minimize the number of active circuits, and use the power-down mode when not in use. Additionally, optimize the system's clock frequency and voltage supply to minimize power consumption.
The WM8918CGEFL/V has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and provide adequate airflow to prevent overheating. A thermal pad or heat sink may be required for high-power applications.
To troubleshoot issues with the WM8918CGEFL/V, start by verifying the power supply and clock signals. Check the device's configuration and register settings, and ensure that the device is properly reset. Use oscilloscopes and logic analyzers to debug digital signals, and consult the datasheet and application notes for troubleshooting guides.
To minimize EMI and EMC issues with the WM8918CGEFL/V, ensure proper PCB layout and shielding, use EMI filters and shielding on I/O lines, and follow good design practices for signal routing and grounding. Consult the datasheet and application notes for specific guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8918CGEFL/V Overview

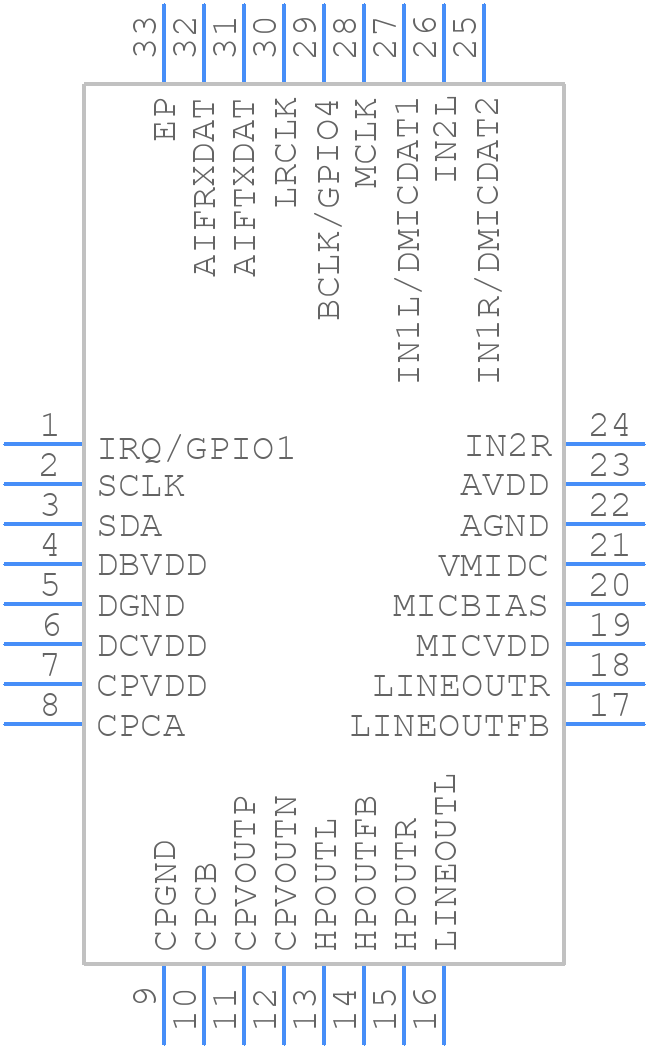

Use the download button to access the WM8918CGEFL/V schematic symbol, PCB footprint, and 3D model.
