WM8940KGEFL/V - Cirrus Logic

Description: Interface - CODECs Mono CODEC w Speaker DRIVER

Download WM8940KGEFL/V Model

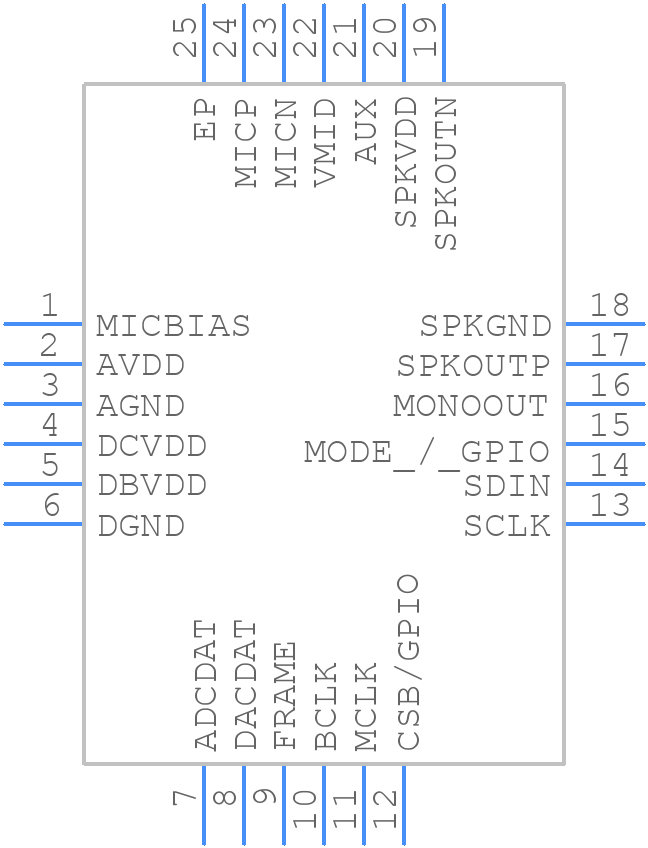

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WM8940KGEFL/V - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 PIN QFN PLASTIC PACKAGE 4 X 4 X 0.75 mm BODY, 0.50 mm LEAD PITCH
click to zoom
3D Models
WM8940KGEFL/V - Cirrus Logic  - 3D model - Quad Flat No-Lead - 24 PIN QFN PLASTIC PACKAGE 4 X 4 X 0.75 mm BODY, 0.50 mm LEAD PITCH
click to zoom

WM8940KGEFL/V Details

  • Manufacturer Part Number:

    WM8940KGEFL/V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    QFN-24

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    1

  • Companding Law:

    A/MU-LAW

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output:

    VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

WM8940KGEFL/V Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly.
  • The WM8940 can be configured using the I2C or SPI interface. The device has several registers that control the audio settings, such as gain, mute, and routing. Refer to the datasheet for the register map and configuration details.
  • The maximum input signal level that the WM8940 can handle is 2.5Vrms. Exceeding this level may result in distortion or damage to the device.
  • To optimize the WM8940 for low power consumption, use the power-down modes, reduce the clock frequency, and adjust the voltage regulators. Additionally, use the dynamic voltage scaling feature to reduce power consumption during idle periods.
  • The recommended layout and routing for the WM8940 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Refer to the datasheet for more detailed layout and routing guidelines.
