WM8960CGEFL/V - Cirrus Logic

Description: Interface - CODECs Stereo CODEC with 1W DRIVER

Download WM8960CGEFL/V Model
Schematic
symbols

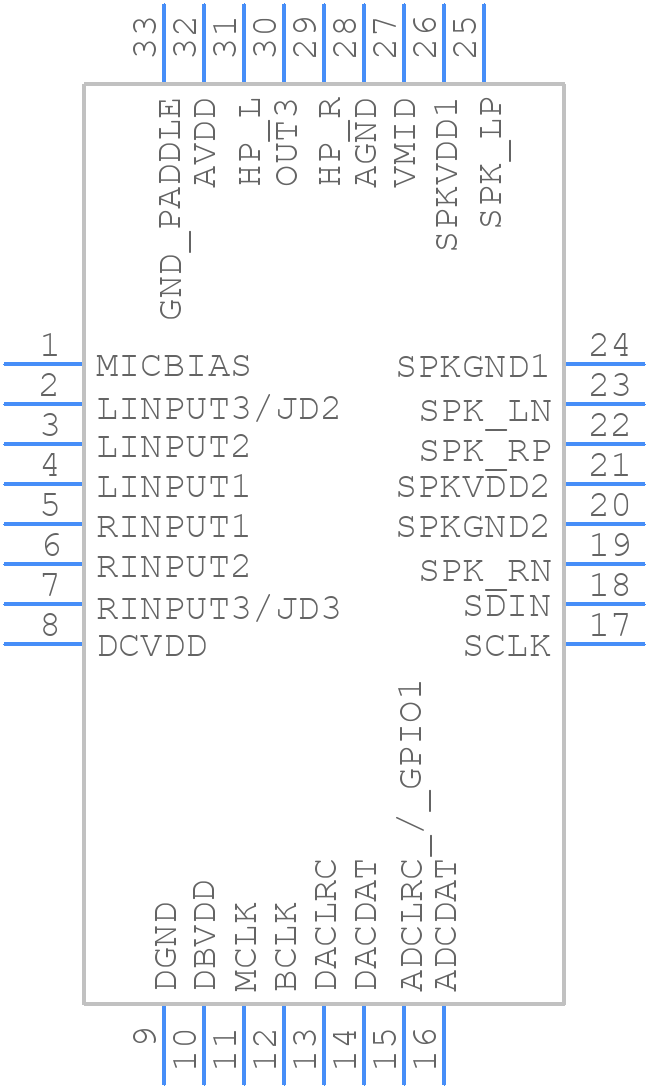

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WM8960CGEFL/V - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FL: 32 PIN QFN PLASTIC PACKAGE 5 X 5 X 0.9
click to zoom
3D Models
WM8960CGEFL/V - Cirrus Logic  - 3D model - Quad Flat No-Lead - FL: 32 PIN QFN PLASTIC PACKAGE 5 X 5 X 0.9
click to zoom

WM8960CGEFL/V Details

  • Manufacturer Part Number:

    WM8960CGEFL/V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, MO-220VHHD-5, QFN-32

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Companding Law:

    A/MU-LAW

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

WM8960CGEFL/V Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures that the internal voltage regulators and analog circuits are properly initialized.
  • The WM8960 can be configured using the I2C interface. The device has multiple registers that control various functions such as gain, mute, and routing. Refer to the datasheet for the register map and configuration details.
  • The maximum input signal level that the WM8960 can handle is 2.5Vrms. Exceeding this level may result in distortion or damage to the device.
  • To optimize power consumption, use the WM8960's power-down modes, adjust the clock frequency, and optimize the analog circuitry. Additionally, consider using the device's automatic power-down feature, which can reduce power consumption when the device is not in use.
  • The WM8960's clock frequency range is 10-50 MHz. The clock frequency affects the device's audio performance, with higher frequencies resulting in better audio quality but increased power consumption. A clock frequency of 12.288 MHz is recommended for most audio applications.
