ALSO REQUIRES DIGITAL CORE SUPPLY VOLTAGE 1.14V TO 2V
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PBGA-B49
Length:
3.984 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
49
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Seated Height-Max:
0.739 mm
Supply Voltage-Max (Vsup):
2 V
Supply Voltage-Min (Vsup):
1.7 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Width:
3.594 mm
WM8963ECSN/R Frequently Asked Questions (FAQs)
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal (MCLK). This ensures proper initialization of the device.
The WM8963ECSN/R is a highly configurable device. You can use the I2C interface to program the device's registers to configure it for your specific audio application. Refer to the datasheet and application notes for more information on register settings and configuration options.
The maximum input signal level that the WM8963ECSN/R can handle is 2.2Vrms for the analog-to-digital converter (ADC) and 1.5Vrms for the digital-to-analog converter (DAC). Exceeding these levels may result in signal distortion or clipping.
To optimize the WM8963ECSN/R's performance for low-power operation, you can use the device's power-down modes, reduce the clock frequency, and adjust the analog and digital supply voltages. Additionally, you can use the device's built-in power-saving features, such as the automatic power-down mode.
The WM8963ECSN/R's latency is typically around 1-2 ms, depending on the sampling rate and other configuration settings. This latency can affect audio applications that require real-time processing, such as voice conferencing or audio streaming. However, for most audio applications, the latency is not a significant issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8963ECSN/R Overview

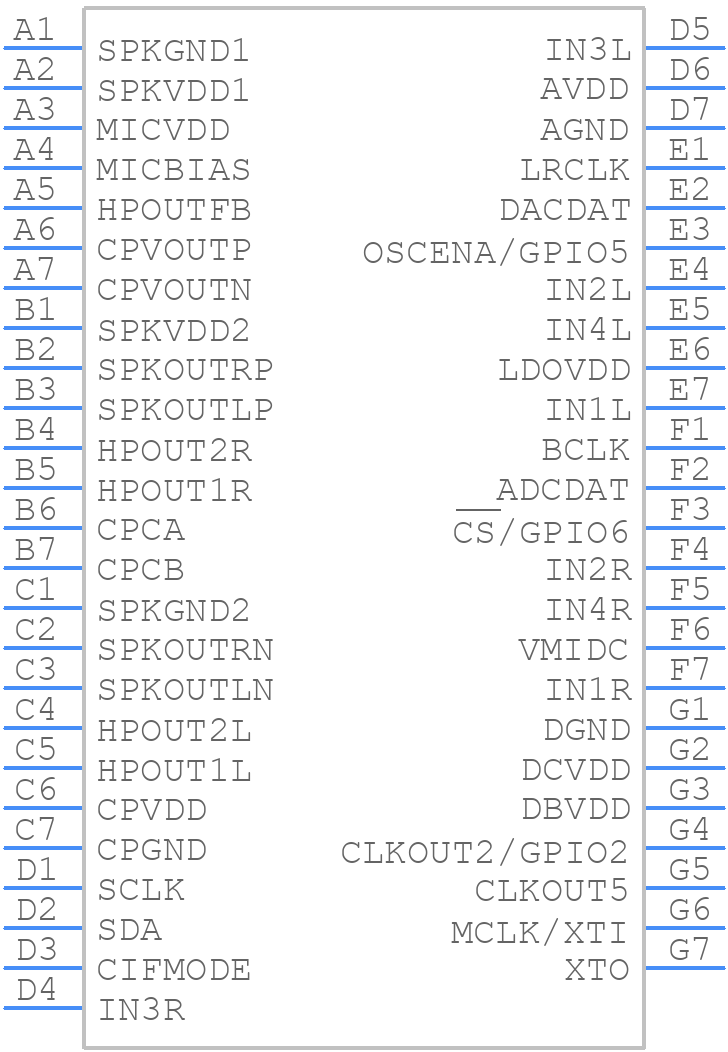

Use the download button to access the WM8963ECSN/R schematic symbol, PCB footprint, and 3D model.
