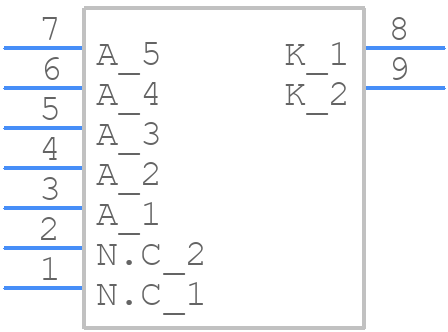

WNSC2D401200TB - WeEn Semiconductors

WNSC2D401200TB Details

• Manufacturer Part Number:

  WNSC2D401200TB

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  WeEn Semiconductor Co Ltd

• YTEOL:

  7

• Application:

  EFFICIENCY

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON CARBIDE

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.6 V

• JESD-30 Code:

  R-PSSO-G7

• Non-rep Pk Forward Current-Max:

  300 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  72 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Reference Standard:

  IEC-60134

• Rep Pk Reverse Voltage-Max:

  1200 V

• Reverse Current-Max:

  200 µA

• Reverse Test Voltage:

  1200 V

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE
