WP4F1+ - Mini-Circuits

Description: Signal Conditioning 4 Ways MMIC Power Splitter, 4750 - 6200 MHz, 50 ohms

Download WP4F1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

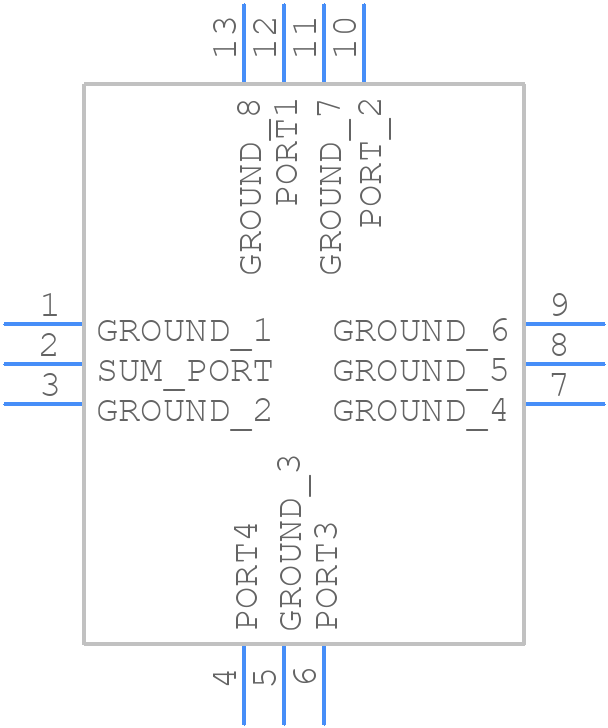

WP4F1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
WP4F1+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12-1
click to zoom
3D Models
WP4F1+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-12-1
click to zoom

WP4F1+ Details

  • Manufacturer Part Number:

    WP4F1+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):16

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    6200 MHz

  • Operating Frequency-Min:

    4750 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Packing Method:

    TR, 7 INCH

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.5

WP4F1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a footprint with a 50-ohm microstrip transmission line and a via-stitched ground plane to minimize signal loss and ensure optimal performance.
  • Use a pi-network or a T-network impedance matching circuit to match the 50-ohm input/output impedance of the WP4F1+ to your system's impedance. Consult the Mini-Circuits application note AN-60-014 for more information.
  • The WP4F1+ can handle up to 1W of continuous power, but it's recommended to derate the power handling to 0.5W for reliable operation.
  • Use a low-noise amplifier or a noise-matching network to optimize the noise figure of the WP4F1+. Additionally, ensure proper PCB layout and grounding to minimize noise coupling.
  • The WP4F1+ is rated for operation up to 85°C, but it's recommended to derate the operating temperature to 70°C for reliable long-term operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WP4F1+ Overview

Use the download button to access the WP4F1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WP4F1, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
