Part Image

WP5603ZGDL/SD/G - Kingbright

Description: Oval Solid State Lamp

Download WP5603ZGDL/SD/G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
WP5603ZGDL/SD/G - Kingbright - PCB symbol
click to zoom
PCB Footprints

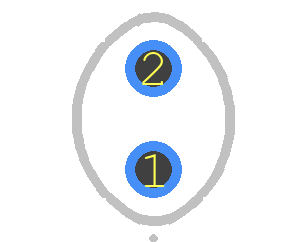

WP5603ZGDL/SD/G - Kingbright PCB footprint - Other - Other - WP5603QBDL/SD/G
click to zoom
3D Models
WP5603ZGDL/SD/G - Kingbright - 3D model - Other - WP5603QBDL/SD/G
click to zoom

WP5603ZGDL/SD/G Details

  • Manufacturer Part Number:

    WP5603ZGDL/SD/G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-2

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    GREEN

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    SEMI DIFFUSED

  • Luminous Intensity-Nom:

    3200.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    7 mm

  • Packing Method:

    BAG; BOX

  • Peak Wavelength:

    520 nm

  • Shape:

    OVAL

  • Size:

    5.2 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    40 deg

WP5603ZGDL/SD/G Frequently Asked Questions (FAQs)

  • The recommended storage temperature for WP5603ZGDL/SD/G is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, WP5603ZGDL/SD/G is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for WP5603ZGDL/SD/G is 260°C for 3 seconds, with a peak temperature of 240°C for 5 seconds.
  • Yes, WP5603ZGDL/SD/G is compatible with lead-free soldering processes, but it's crucial to follow the recommended soldering profile to avoid damaging the component.
  • The typical luminous intensity of WP5603ZGDL/SD/G is around 1500-2000 mcd, but this value can vary depending on the specific product and batch.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WP5603ZGDL/SD/G Overview

Use the download button to access the WP5603ZGDL/SD/G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WP560, or try a keyword search, such as Visible LEDs
