WP819SURKMGKW - Kingbright

Description: Standard LEDs - Through Hole Red Green 630 570nm Diffused 750 130mcd

Download WP819SURKMGKW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

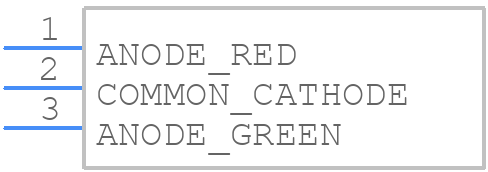

WP819SURKMGKW - Kingbright - PCB symbol
click to zoom
PCB Footprints

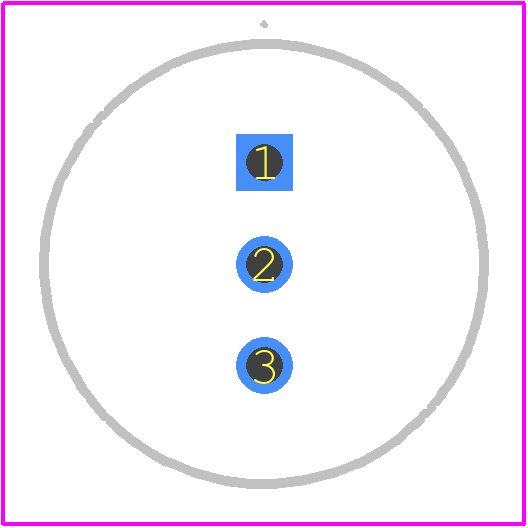

WP819SURKMGKW - Kingbright PCB footprint - Other - Other - WP819SURKMGKW-1
click to zoom
3D Models
WP819SURKMGKW - Kingbright - 3D model - Other - WP819SURKMGKW-1
click to zoom

WP819SURKMGKW Details

  • Manufacturer Part Number:

    WP819SURKMGKW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-2

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED/MEGA GREEN

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    750.0/130.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    13.5 mm

  • Packing Method:

    BAG; BOX

  • Peak Wavelength:

    650/574 nm

  • Shape:

    ROUND

  • Size:

    10 mm

  • Surface Mount:

    NO

  • T-code:

    T-4

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    50 deg

WP819SURKMGKW Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for WP819SURKMGKW is -40°C to 100°C.
  • Yes, WP819SURKMGKW is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors like moisture and UV.
  • The typical forward voltage drop for WP819SURKMGKW is around 2.0-2.5V, but it's recommended to check the datasheet for specific voltage drop values at different currents.
  • When soldering WP819SURKMGKW, it's essential to follow the recommended soldering temperature profile (260°C max) and avoid applying excessive heat or mechanical stress to prevent damage.
  • Yes, WP819SURKMGKW is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
