WP934SB/4LGD - Kingbright

Description: LED Circuit Board Indicators 3mm 568nm QUAD-LVL LED INDICATOR

Download WP934SB/4LGD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this WP934SB/4LGD model

Email notifications will be applied after download.

Send part feedback

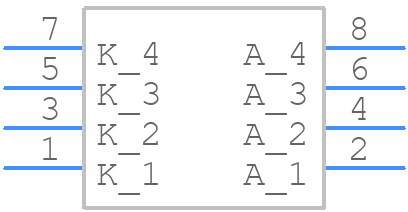

Symbol

WP934SB/4LGD - Kingbright - PCB symbol

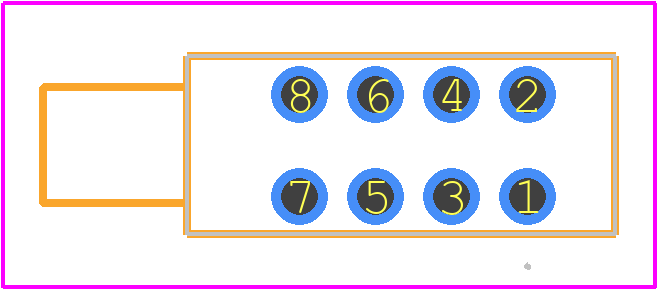

PCB Footprints

WP934SB/4LGD - Kingbright PCB footprint - Other - Other - T-1 (3mm) Quad-Level Circuit Board Indicator

Datasheet Download Datasheet
Stock & Prices Price & Stock for WP934SB/4LGD
Part Number WP934SB/4LGD
Manufacturer Kingbright
Pin Count 8
Part Category LED
Package Category Other
Footprint Name Other - T-1 (3mm) Quad-Level Circuit Board Indicator
Released Date Jul 31, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

WP934SB/4LGD Details

Manufacturer Part Number:
WP934SB/4LGD
Manufacturer:
Kingbright

Trust Checks

Expert Contribution

System Verified

Community Approved

WP934SB/4LGD Overview

Use the download button to access the WP934SB/4LGD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like WP934, or try a keyword search, such as Visible LEDs
