WP937SB/4YGW - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator 4 High Green (x 2), Yellow (x 2) Diffused, White 2.2V Green, 2.1V Yellow 20mA Green, 20mA Yell

Download WP937SB/4YGW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this WP937SB/4YGW model

Email notifications will be applied after download.

Send part feedback

Symbol

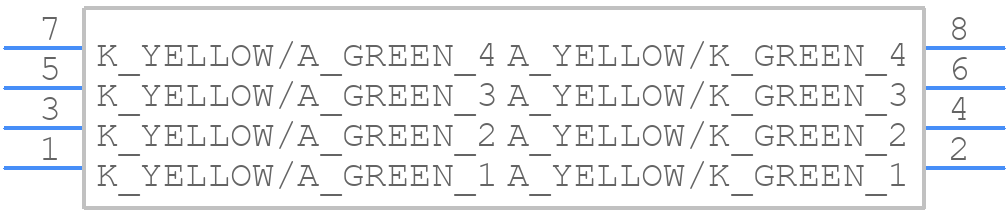

WP937SB/4YGW - Kingbright - PCB symbol

PCB Footprints

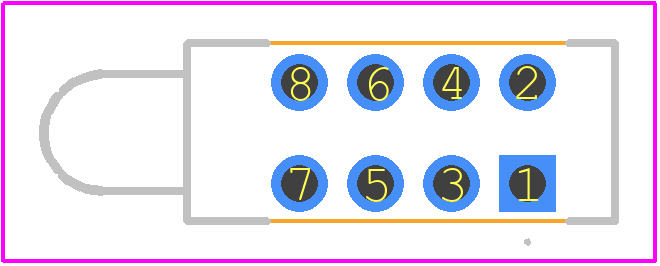

WP937SB/4YGW - Kingbright PCB footprint - Other - Other - WP937SB/4YGW-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for WP937SB/4YGW
Part Number WP937SB/4YGW
Manufacturer Kingbright
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - WP937SB/4YGW-3
Released Date Feb 25, 2026
Last Modified Date Feb 25, 2026 9:44 PM UTC
Pinout / Pin List Click Here (Member Only)

WP937SB/4YGW Details

Manufacturer Part Number:
WP937SB/4YGW
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6.25
Color:
YELLOW/GREEN
Configuration:
4 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Forward Current-Max:
0.025 A
Forward Voltage-Max:
2.5 V
Lens Type:
DIFFUSED WHITE
Luminous Intensity-Nom:
7.0/16.0 mcd
Mounting Feature:
RADIAL MOUNT
Number of Functions:
4
Number of LEDs in Array:
4
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
DUAL COLOR LED ARRAY
Overall Height:
20.3 mm
Packing Method:
TUBE
Peak Wavelength:
590/565 nm
Shape:
ROUND
Size:
3 mm
Surface Mount:
NO
T-code:
T-1
Terminal Pitch:
2.54 mm
Viewing Angle:
60 deg

WP937SB/4YGW Frequently Asked Questions (FAQs)

The recommended storage temperature for WP937SB/4YGW is -20°C to 40°C, with a relative humidity of 60% or less.
Yes, WP937SB/4YGW is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
The typical forward voltage drop for WP937SB/4YGW is around 2.0-2.5V, but it can vary depending on the operating current and temperature.
Yes, WP937SB/4YGW is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The maximum allowable current for WP937SB/4YGW is 30mA, but it's recommended to operate within the specified operating current range for optimal performance and lifespan.
