MORNSUN recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, keeping the PCB layer as thin as possible and using thermal vias can help to improve thermal performance.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves for output power and input voltage. Additionally, ensure good airflow, and consider using a heat sink or thermal interface material to reduce the junction temperature.
The maximum capacitance on the output is limited by the stability of the converter. MORNSUN recommends a maximum output capacitance of 22uF to ensure stability. However, this value may vary depending on the specific application and output voltage. It's recommended to consult with MORNSUN's technical support for specific guidance.
Yes, the WRA1212S-3WR2 can be used in a redundant or parallel configuration. However, it's essential to follow MORNSUN's guidelines for parallel operation, including using identical modules, ensuring proper synchronization, and implementing adequate overcurrent protection.
The typical start-up time for the WRA1212S-3WR2 is around 10-15ms. However, this time may vary depending on the input voltage, output capacitance, and other application-specific factors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WRA1212S-3WR2 Overview

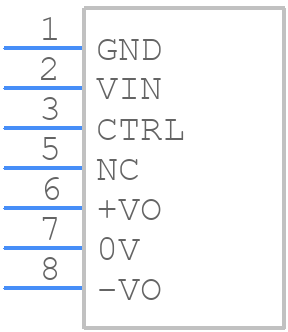

Use the download button to access the WRA1212S-3WR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WRA12,
or try a keyword search, such as Power Supply Modules
