WRB1205S-3WR2 - Mornsun Power

Description: DC to DC Converter Module

Download WRB1205S-3WR2 Model

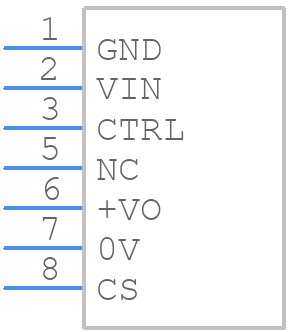

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WRB1205S-3WR2 - Mornsun Power PCB footprint - Other - Other - WRB1205S-3WR2-1
click to zoom
3D Models
WRB1205S-3WR2 - Mornsun Power  - 3D model - Other - WRB1205S-3WR2-1
click to zoom

WRB1205S-3WR2 Details

  • Manufacturer Part Number:

    WRB1205S-3WR2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    MORNSUN

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SIP7/8,.1

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Total Power Output-Max:

    3 W

WRB1205S-3WR2 Frequently Asked Questions (FAQs)

  • The maximum capacitance on the output is 220uF. Exceeding this value may cause instability or oscillation.
  • The WRB1205S-3WR2 is certified to UL60950-1, EN60950-1, and IEC60950-1. Ensure your system design meets the safety requirements and guidelines outlined in the datasheet and relevant safety standards.
  • Keep the input and output capacitors close to the converter. Use a solid ground plane and separate layers for input and output. Minimize trace lengths and use wide traces for power lines. Refer to the datasheet for a recommended layout example.
  • The WRB1205S-3WR2 is rated for operation up to 85°C. Derate the output power by 2.5% per °C above 60°C. Ensure good airflow and consider heat sinking if operating in high-temperature environments.
  • Use a TVS diode or a voltage clamp on the input to protect against voltage surges. Ensure the surge protection device is rated for the maximum input voltage and energy.
