WT20GSS - Econ Connect

Description: Econ connect pin header (standard) WT number of poles total 20 pitch: 2.54mm WT20GSS 17pcs.

Download WT20GSS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this WT20GSS model

Email notifications will be applied after download.

Send part feedback

Symbol

WT20GSS - Econ Connect - PCB symbol

PCB Footprints

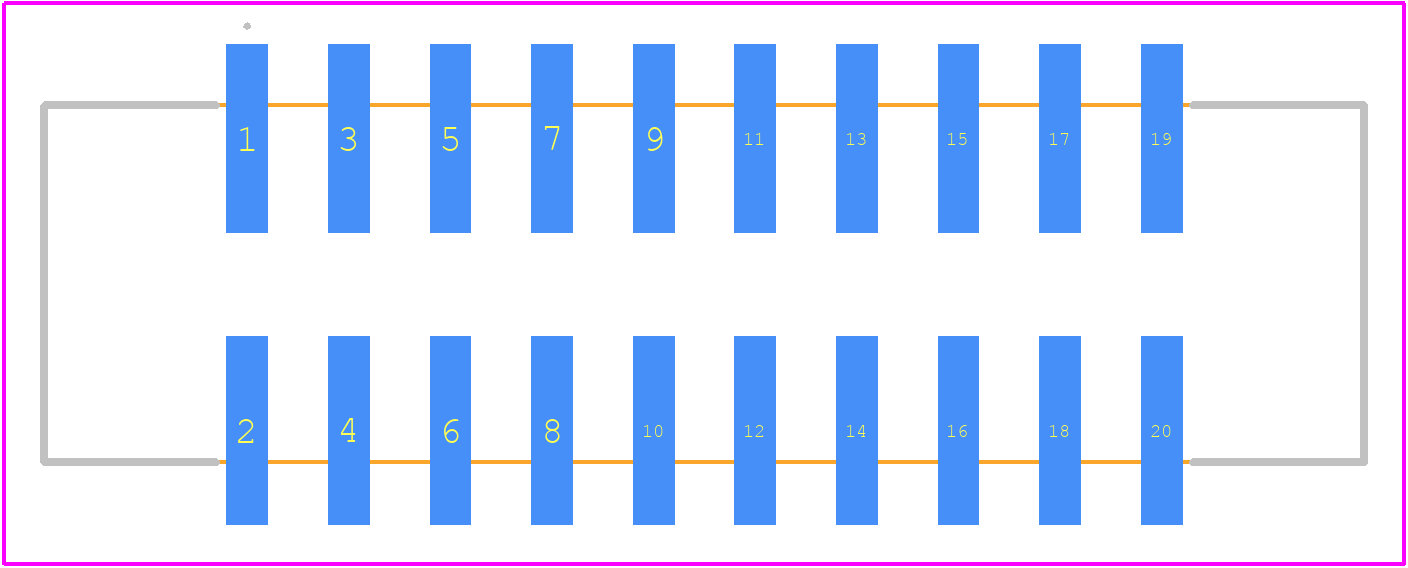

WT20GSS - Econ Connect PCB footprint - Other - Other - WT20GSS-2

3D Models

WT20GSS - Econ Connect - 3D model - Other - WT20GSS-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for WT20GSS
Part Number WT20GSS
Manufacturer Econ Connect
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - WT20GSS-2
Released Date Jan 18, 2024
Last Modified Date Jan 18, 2024 6:37 AM UTC
Pinout / Pin List Click Here (Member Only)

WT20GSS Details

Manufacturer Part Number:
WT20GSS
Manufacturer:
econ connect

Trust Checks

Community Provided

System Verified

Community Approved

WT20GSS Overview

Use the download button to access the WT20GSS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like WT20G, or try a keyword search, such as Visible LEDs
