The recommended PCB layout for optimal thermal performance involves placing thermal vias under the X1600E package, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms. Additionally, consider using a thermal interface material (TIM) with a high thermal conductivity.
While the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowable voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
To troubleshoot issues with the X1600E's internal oscillator, check the oscillator circuitry for proper connections, ensure the correct crystal or ceramic resonator is used, and verify that the oscillator enable pin is properly configured. If issues persist, consult the application note or contact Lumissil Microsystems' technical support.
The recommended ESD protection for the X1600E involves using a human body model (HBM) ESD protection device with a minimum rating of 2kV, and following proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X1600E Overview

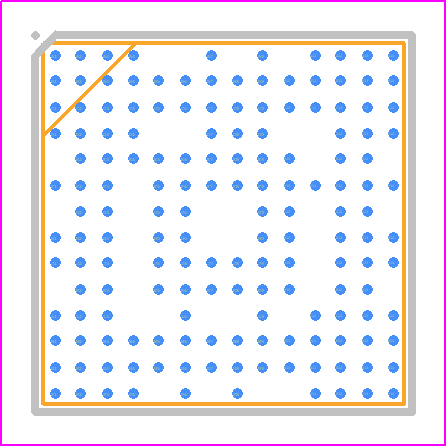

Use the download button to access the X1600E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X1600,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
