The X2000 has a thermal pad on the bottom of the package, so it's essential to design a PCB with a solid copper plane connected to a thermal relief pattern to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using a thermal management system, such as a heat sink or fan, to maintain a stable temperature within the specified range.
The X2000's built-in OCP feature is designed to protect the device from excessive current. However, it's essential to note that the OCP threshold is not adjustable, and it may not trigger immediately in all fault scenarios. Therefore, it's recommended to implement additional external protection mechanisms, such as fuses or current-sensing resistors, to ensure comprehensive protection.
While the X2000 is a high-quality device, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Lumissil Microsystems provides additional documentation and support for such applications, including failure modes and effects analysis (FMEA) and fault tree analysis (FTA) reports. Contact their technical support team for more information.
When troubleshooting issues related to the internal voltage regulator, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, contact Lumissil Microsystems' technical support team for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X2000 Overview

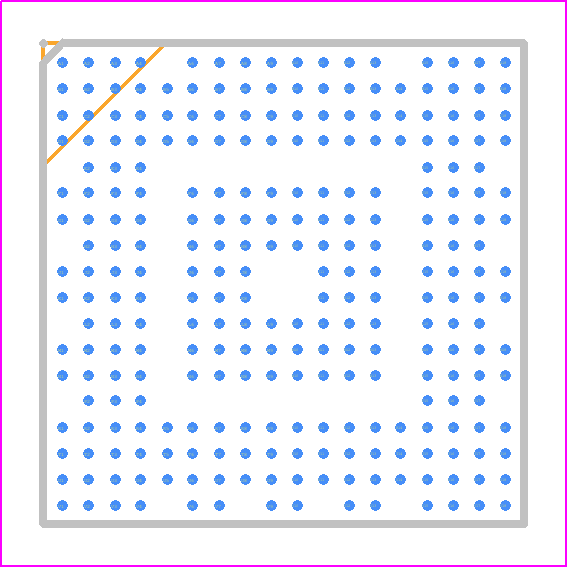

Use the download button to access the X2000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
