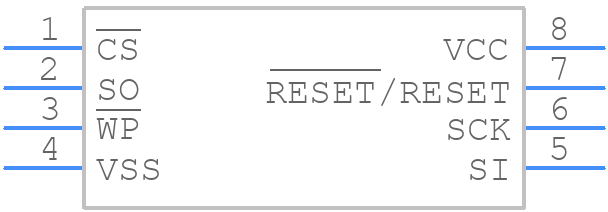

X25045SI - Renesas Electronics

X25045SI Details

• Manufacturer Part Number:

  X25045SI

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PLASTIC, SOIC-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  PROGRAMMABLE WATCHDOG TIMER; ACTIVE HIGH RESET

• Clock Frequency-Max (fCLK):

  1 MHz

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.89 mm

• Memory Density:

  4096 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  512 words

• Number of Words Code:

  512

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  512X8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  SERIAL

• Seated Height-Max:

  1.75 mm

• Serial Bus Type:

  SPI

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm

• Write Cycle Time-Max (tWC):

  10 ms
