Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer provides
A good PCB layout for the X5043M8IZ-2.7A involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the power traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The X5043M8IZ-2.7A has a thermal pad on the bottom of the package, which should be connected to a thermal relief pattern on the PCB to dissipate heat efficiently. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink or PCB.
The recommended input capacitor value for the X5043M8IZ-2.7A is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 2.7V. A ceramic capacitor (X5R or X7R dielectric) or a tantalum capacitor is recommended.
The X5043M8IZ-2.7A requires a power-on reset (POR) circuit to ensure proper initialization. A POR circuit can be implemented using a voltage supervisor IC or a simple RC circuit. Additionally, the device should be powered up slowly (dv/dt < 10mV/us) to prevent latch-up or other issues.
To minimize EMI and ensure EMC, it's recommended to use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, the device should be placed away from other noise-sensitive components and antennas.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5043M8IZ-2.7A Overview

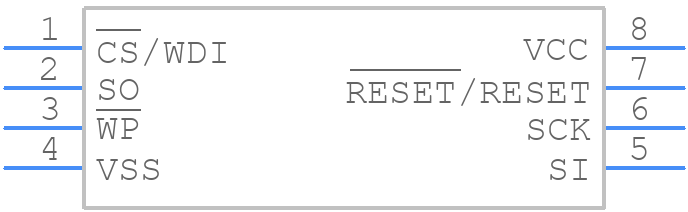

Use the download button to access the X5043M8IZ-2.7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X5043,
or try a keyword search, such as Power Management Circuits
