Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer provides
Renesas provides a recommended PCB layout guide in their application note (AP-AN-1143) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The X5043S8Z has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control register. The WDT can be set to reset the device or generate an interrupt upon timeout. Refer to the datasheet and application notes for specific implementation details.
The X5043S8Z is rated for operation from -40°C to +85°C (industrial temperature range). However, it's essential to consider the specific application's thermal requirements and ensure proper thermal management to prevent overheating.
Yes, the X5043S8Z is suitable for battery-powered devices due to its low power consumption (typically 1.5mA in active mode and 10μA in sleep mode). However, it's crucial to consider power management strategies, such as power gating and dynamic voltage scaling, to minimize power consumption and extend battery life.
To troubleshoot I2C interface issues, use a logic analyzer or oscilloscope to monitor the SCL and SDA lines. Check for proper signal levels, clock stretching, and bus contention. Ensure that the I2C slave devices are properly addressed and configured. Refer to the datasheet and application notes for specific I2C configuration and troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5043S8Z Overview

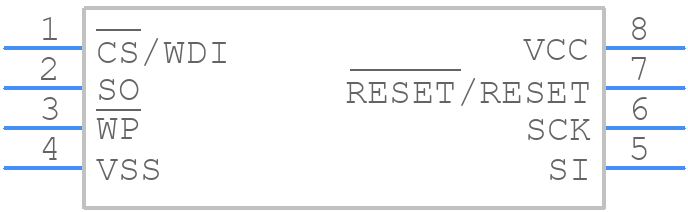

Use the download button to access the X5043S8Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X5043,
or try a keyword search, such as Power Management Circuits
