Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer provides
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN1469) and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
The X5045PZ-2.7 has an internal POR and BOR circuitry. To handle these, ensure a proper power-up sequence, and consider adding external circuitry (e.g., a voltage supervisor) to detect and respond to power failures or brown-out conditions.
The X5045PZ-2.7 has a thermal junction-to-ambient resistance (RθJA) of 45°C/W. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias and copper pours.
The X5045PZ-2.7 has a built-in WDT. To implement a reliable WDT, configure the WDT period and timeout correctly, and ensure that the WDT is regularly reset or refreshed by the application software.
To minimize EMC and EMI issues, follow proper PCB design practices, use shielding, and ensure that the device is properly decoupled. Additionally, consider using EMI filters and common-mode chokes in the power supply lines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5045PZ-2.7 Overview

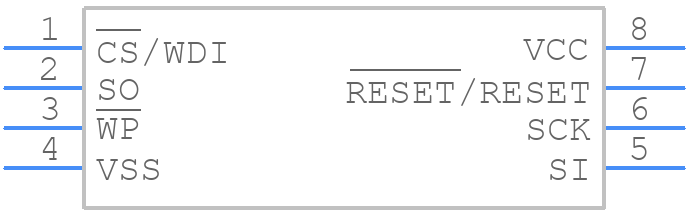

Use the download button to access the X5045PZ-2.7 schematic symbol, PCB footprint, and 3D model.
