Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor can execute code. The Watchdog Timer provid
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends using an external power sequencer or a dedicated power management IC to ensure proper power sequencing. The X5323S8IZ has a specific power-up sequence requirement, which is detailed in the datasheet and application notes.
While the datasheet specifies an operating temperature range of -40°C to 105°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliability and prevent thermal shutdown.
Yes, the X5323S8IZ is designed to withstand high-vibration environments. However, it's essential to follow Renesas' guidelines for PCB design, component mounting, and mechanical stress mitigation to ensure the device's reliability.
Renesas provides a troubleshooting guide in their application notes, which covers common issues with the I2C interface, such as bus contention, clock stretching, and data corruption. Additionally, using an I2C bus analyzer or a logic analyzer can help identify and debug issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5323S8IZ Overview

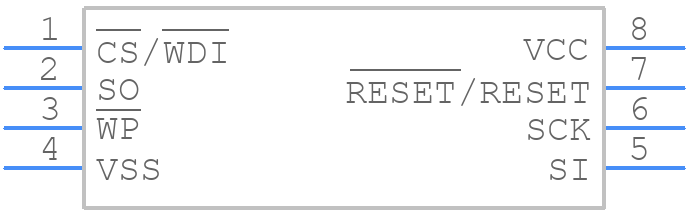

Use the download button to access the X5323S8IZ schematic symbol, PCB footprint, and 3D model.
