X5325S8IZ-2.7T1 - Renesas Electronics

Description: These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor can execute code. The Watchdog Timer provid

Download X5325S8IZ-2.7T1 Model

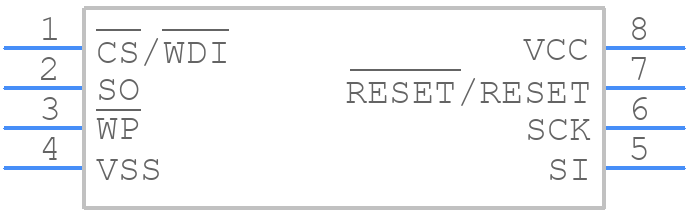

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X5325S8IZ-2.7T1 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15E+
click to zoom
3D Models
X5325S8IZ-2.7T1 - Renesas Electronics  - 3D model - Small Outline Packages - M8.15E+
click to zoom

X5325S8IZ-2.7T1 Details

  • Manufacturer Part Number:

    X5325S8IZ-2.7T1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    ,

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

X5325S8IZ-2.7T1 Overview

Use the download button to access the X5325S8IZ-2.7T1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X5325, or try a keyword search, such as Power Management Circuits
