X9015US8IZT1 - Renesas Electronics

Description: The Intersil X9015 is a 32 tap potentiometer that is volatile. The device consists of a string of 31 resistors that can be programmed to connect the RW/VW wiper output with any of the nodes between the connecting resistors. The connection point of the wiper is determined by information communicated to the device on the 3-wire port. The 3-wire port changes the tap position by a falling edge on the increment pin. The direction the wiper moves is determined by the state of the up/down pin. The wiper position a

Download X9015US8IZT1 Model

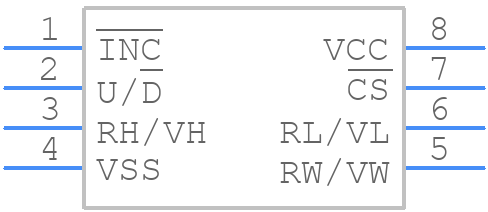

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9015US8IZT1 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
X9015US8IZT1 - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

X9015US8IZT1 Details

  • Manufacturer Part Number:

    X9015US8IZT1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

X9015US8IZT1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the X9015US8IZT1 is -40°C to +85°C, but it can operate up to +125°C for short periods of time.
  • To properly handle POR and BOR, ensure that the power supply voltage (VCC) rises monotonically and does not drop below the minimum operating voltage during power-up. Also, use an external capacitor to filter out noise and ensure a clean reset signal.
  • The X9015US8IZT1 supports a maximum clock frequency of 16 MHz, but it can be overclocked up to 20 MHz with reduced voltage and temperature ranges.
  • To configure the WDT, set the WDT clock source to the internal clock or an external clock, and adjust the timeout period according to your application's requirements. Also, ensure that the WDT is reset periodically to prevent unwanted resets.
  • The X9015US8IZT1's ADC has a limited resolution of 10 bits, and the conversion time is relatively slow (around 100 μs). Additionally, the ADC input range is limited to 0-5V, and the input impedance is relatively high (around 10 kΩ).
