X9110TV14IZ - Renesas Electronics

Description: The X9110 integrates a Single Digitally Controlled Potentiometer (XDCP) on a monolithic CMOS integrated circuit. The digital controlled potentiometer is implemented using 1023 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the SPI bus interface. The potentiometer has associated with it a volatile Wiper Counter Register (WCR) and four non-volatile Data Register

Download X9110TV14IZ Model

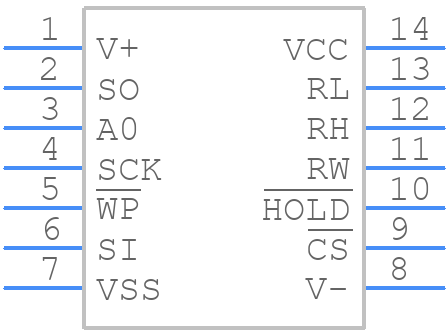

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9110TV14IZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M14.173 Rev 3
click to zoom
3D Models
X9110TV14IZ - Renesas Electronics  - 3D model - Small Outline Packages - M14.173 Rev 3
click to zoom

X9110TV14IZ Details

  • Manufacturer Part Number:

    X9110TV14IZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    1024

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -5.5 V

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

X9110TV14IZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor IC, to detect and respond to overvoltage conditions. The X9110TV14IZ does not have built-in OVP.
  • The X9110TV14IZ has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and power consumption at higher temperatures to ensure reliability.
  • Yes, the X9110TV14IZ is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, it's essential to follow Renesas' guidelines for design, testing, and manufacturing to ensure compliance with industry standards.
  • Renesas provides a troubleshooting guide in their application note (APL-AN-115) which covers common issues, debugging techniques, and fault analysis methods. Additionally, engineers can contact Renesas' technical support for further assistance.
