Description:The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Regis
Renesas provides a recommended PCB layout guide in their application note (AN1469) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The X9241AWPIZ has built-in fault detection features such as over-temperature, over-voltage, and under-voltage detection. Engineers can use these features to implement fault detection and protection mechanisms in their design. Additionally, Renesas provides guidance on fault detection and protection in their application notes and technical documentation.
The recommended power-up sequence for the X9241AWPIZ is to first apply the power supply voltage (VCC) and then the input voltage (VIN). This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
To optimize the X9241AWPIZ for low-power consumption, engineers can use the device's power-saving features such as the shutdown mode, low-power mode, and dynamic voltage scaling. Additionally, optimizing the external circuitry and component selection can also help reduce power consumption.
The maximum operating temperature range for the X9241AWPIZ is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and engineers should consult the datasheet and application notes for guidance on operating temperature ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X9241AWPIZ Overview

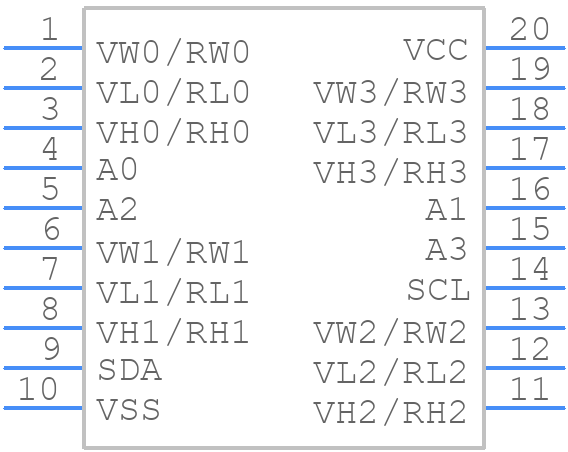

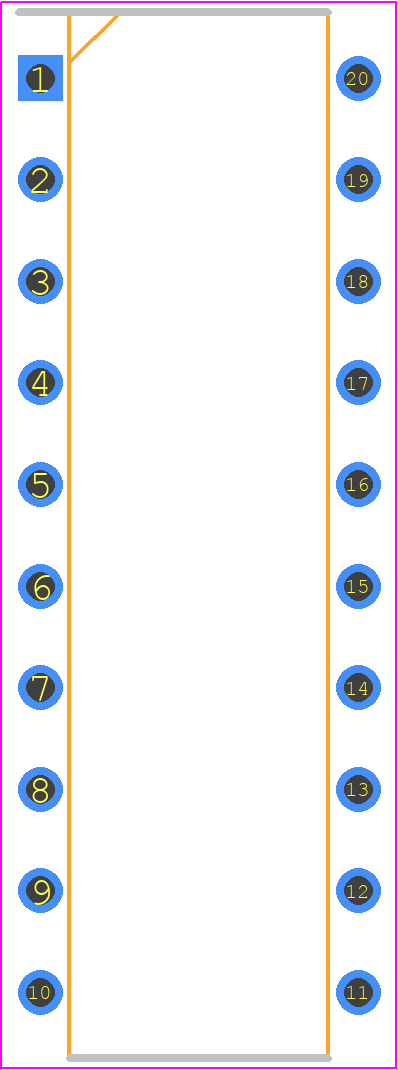

Use the download button to access the X9241AWPIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X9241,
or try a keyword search, such as Digital Potentiometers
