X9315TSIZ-2.7 - Renesas Electronics

Description: The Intersil X9315 is a digitally controlled potentiometer (XDCP). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a 3-wire interface. The potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The

Download X9315TSIZ-2.7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

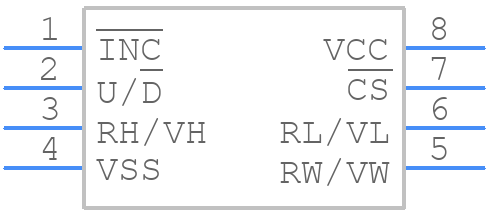

Symbol
X9315TSIZ-2.7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
X9315TSIZ-2.7 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
X9315TSIZ-2.7 - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

X9315TSIZ-2.7 Details

  • Manufacturer Part Number:

    X9315TSIZ-2.7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    32

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3.9 mm

X9315TSIZ-2.7 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP-AN-1143) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The X9315TSIZ-2.7 has an internal POR and BOR circuitry. To handle these, ensure that the power supply is stable and within the recommended voltage range. Also, add external capacitors to filter out noise and ensure a clean power-on sequence. Refer to the datasheet for specific capacitor values and placement guidelines.
  • Although the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation, especially in high-temperature environments. Consult Renesas' thermal management guidelines for more information.
  • The X9315TSIZ-2.7's EEPROM can be programmed using Renesas' programming tools, such as the IAR Embedded Workbench or the Renesas Flash Development Toolkit. Consult the datasheet and programming guides for specific instructions and software requirements.
  • Renesas recommends using ceramic capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the device's power pins. The exact value and type of capacitor may vary depending on the specific application and operating conditions. Consult the datasheet and application notes for more information.
