XA7S25-1CSGA324I - AMD

XA7S25-1CSGA324I Details

• Manufacturer Part Number:

  XA7S25-1CSGA324I

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

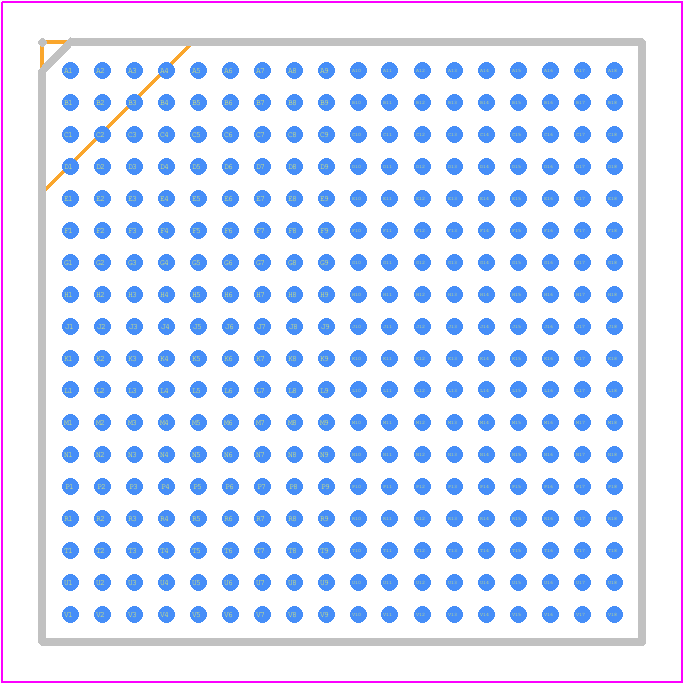

• Package Description:

  CSBGA-324

• HTS Code:

  8542.31.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  AMD

• YTEOL:

  9

• Combinatorial Delay of a CLB-Max:

  1.27 ns

• JESD-30 Code:

  S-PBGA-B324

• JESD-609 Code:

  e1

• Length:

  15 mm

• Moisture Sensitivity Level:

  3

• Number of CLBs:

  1825

• Number of Inputs:

  150

• Number of Logic Cells:

  23360

• Number of Outputs:

  150

• Number of Terminals:

  324

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1825 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA324,18X18,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  1.5 mm

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  HKMG, 28 nm

• Terminal Finish:

  Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  15 mm
