Texas Instruments provides a recommended PCB layout in the XAM5708 datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The XAM5708 has multiple power modes, including active, sleep, and shutdown. Configuration is done through the Power Management Interface (PMI) using specific register settings. Refer to the datasheet and application notes for detailed information on configuring power modes.
The XAM5708 has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interfaces to keep the device within the recommended operating temperature range (–40°C to 105°C).
For I2C interface issues, check the clock frequency, signal integrity, and bus capacitance. Ensure that the I2C bus is properly terminated, and the slave address is correctly configured. Use a logic analyzer or oscilloscope to debug the I2C communication.
The XAM5708 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XAM5708BCBDJEA Overview

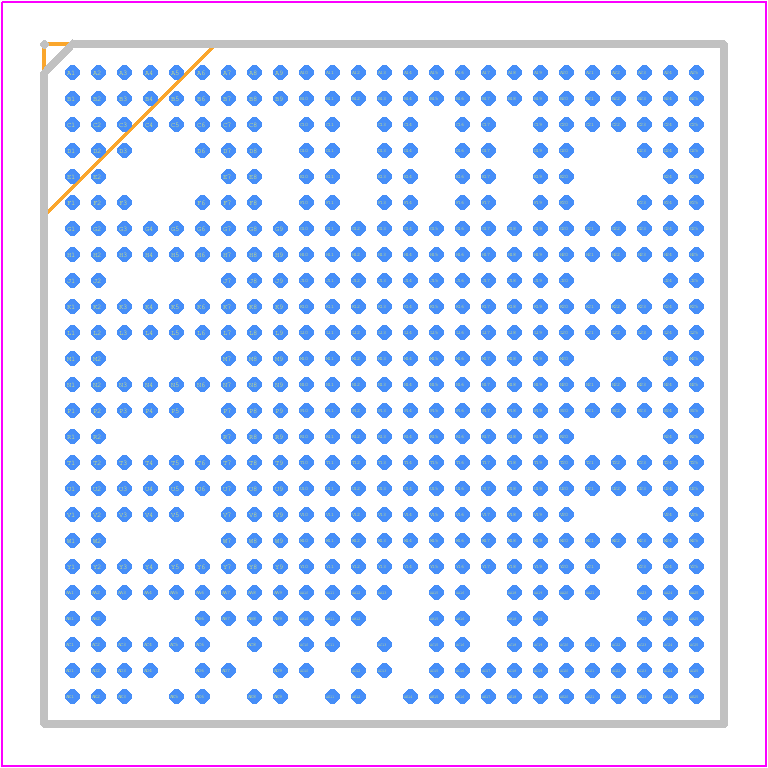

Use the download button to access the XAM5708BCBDJEA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XAM57,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
