XB3-24Z8CM - Digi International

Description: Zigbee Modules (802.15.4) XBee3PRO,2.4 GhzZB 3.0, Chip Ant, MMT

Download XB3-24Z8CM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

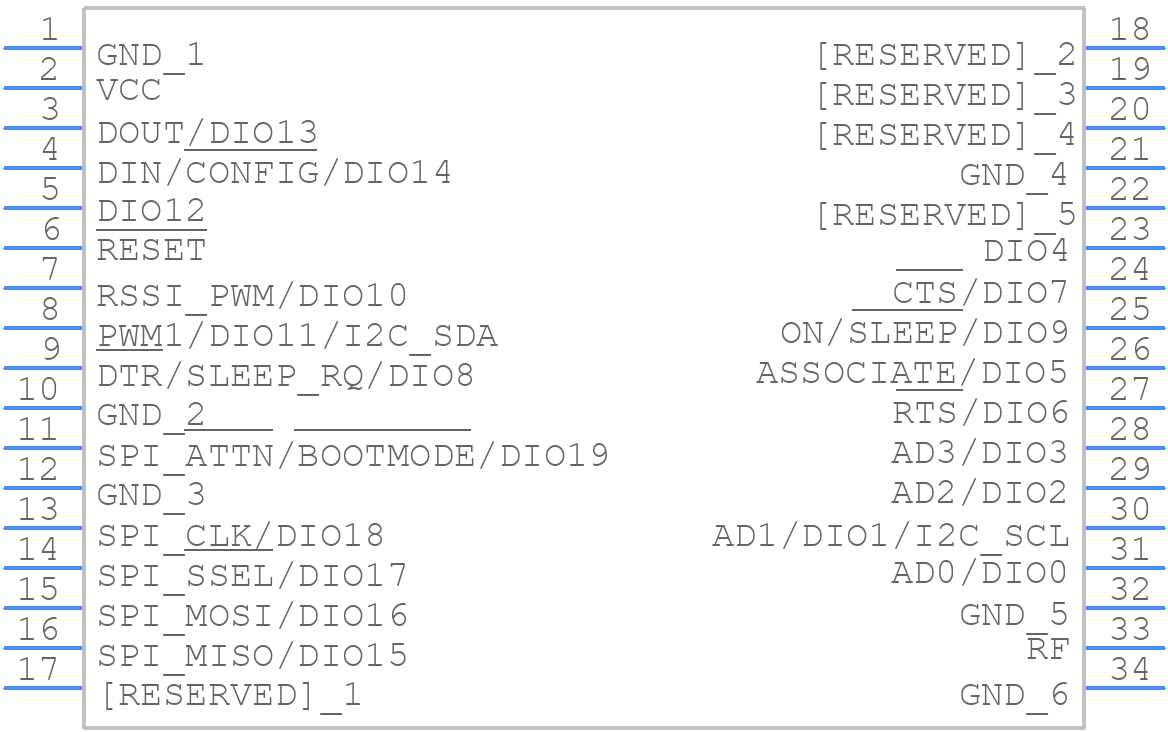

XB3-24Z8CM - Digi International - PCB symbol
click to zoom
PCB Footprints

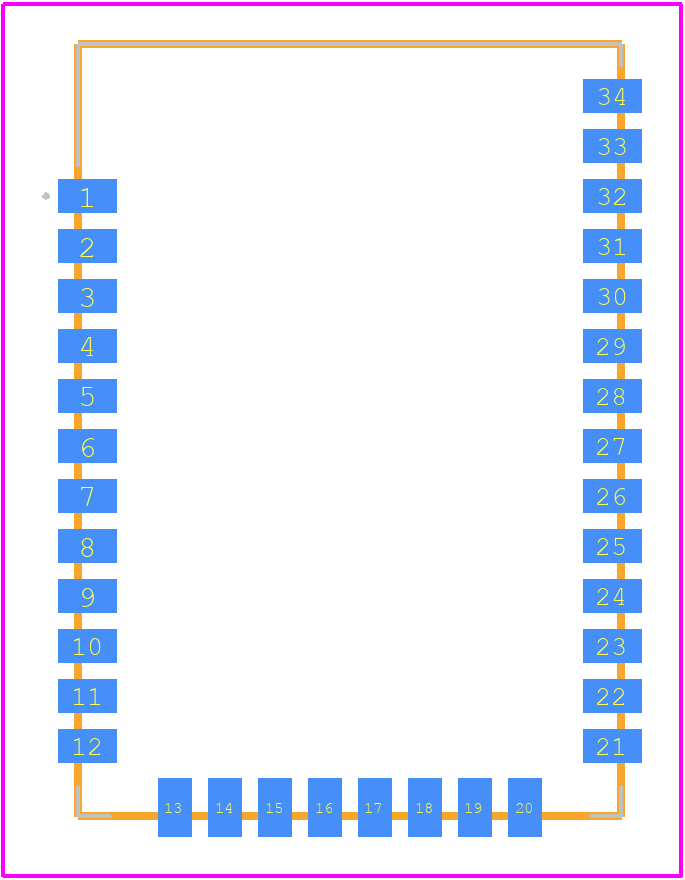

XB3-24Z8CM - Digi International PCB footprint - Other - Other - XBEE3 MICRO
click to zoom
3D Models
XB3-24Z8CM - Digi International - 3D model - Other - XBEE3 MICRO
click to zoom

XB3-24Z8CM Details

  • Manufacturer Part Number:

    XB3-24Z8CM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-34

  • Country Of Origin:

    Cambodia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8517.62.00.90

  • Factory Lead Time:

    17 Weeks, 1 Day

  • Manufacturer:

    Digi International Inc

  • JESD-30 Code:

    R-XXMA-N34

  • Length:

    19 mm

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    13 mm

XB3-24Z8CM Frequently Asked Questions (FAQs)

  • Digi recommends using a 2.4 GHz antenna with a gain of 2-3 dBi for optimal performance. The antenna should be designed for the 2.4 GHz frequency band and have a 50-ohm impedance.
  • To configure the XB3-24Z8CM module for low power consumption, set the module to sleep mode using the AT command 'AT+SLEEP' and adjust the sleep timer to a suitable value. Additionally, disable unnecessary features like Bluetooth and Wi-Fi when not in use.
  • The maximum range of the XB3-24Z8CM module depends on the environment and the antenna used. In ideal conditions, the module can achieve a range of up to 100 meters (330 feet) indoors and up to 1 kilometer (0.62 miles) outdoors.
  • Yes, you can use the XB3-24Z8CM module with a non-Digi antenna, but ensure that the antenna is designed for the 2.4 GHz frequency band and has a 50-ohm impedance. However, using a non-Digi antenna may affect the module's performance and range.
  • To update the firmware of the XB3-24Z8CM module, use the Digi XBee Configuration and Test Utility software. Connect the module to the computer using a USB adapter, and follow the software's instructions to update the firmware.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XB3-24Z8CM Overview

Use the download button to access the XB3-24Z8CM schematic symbol, PCB footprint, and 3D model.
