XBF-282+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS BANDPASS FILTER

Download XBF-282+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

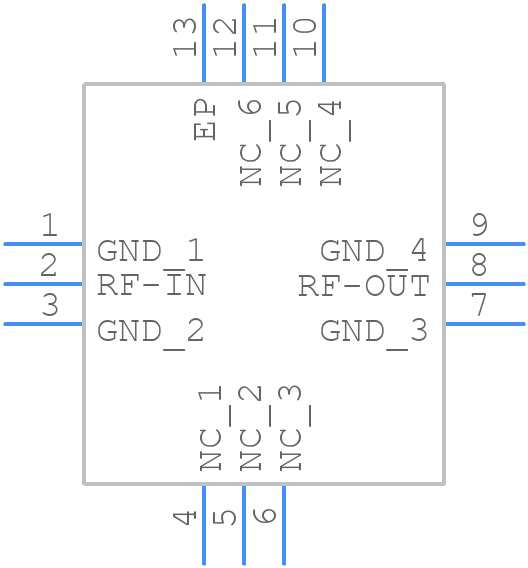

XBF-282+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XBF-282+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3X3X0.89MM PITCH 0.51MM
click to zoom
3D Models
XBF-282+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 3X3X0.89MM PITCH 0.51MM
click to zoom

XBF-282+ Details

  • Manufacturer Part Number:

    XBF-282+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN, 12 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    2750 MHz

  • Filter Type:

    BAND PASS FILTER

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.6 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC/EPOXY

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm

XBF-282+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-inductance path to ground for the amplifier's ground pins. A good layout practice is to keep the input and output traces short and away from each other to minimize coupling.
  • The XBF-282+ is a fixed-gain amplifier, but the bias voltage can be adjusted to optimize linearity and gain. Typically, a bias voltage of 5-6V is recommended, but this may vary depending on the specific application and operating conditions.
  • The XBF-282+ can handle input powers up to +10 dBm without damage, but it's recommended to keep the input power below +5 dBm for optimal performance and to prevent compression.
  • For high-power applications, it's essential to provide adequate thermal management to prevent overheating. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the amplifier.
  • The typical noise figure of the XBF-282+ is around 2.5 dB, but this can vary depending on the frequency, temperature, and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XBF-282+ Overview

Use the download button to access the XBF-282+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XBF-2, or try a keyword search, such as General Purpose Passive Filters
