XC2368E136F128LRAAKXUMA1 - Infineon

Description: 16/32-Bit Single-Chip Microcontroller with 32-Bit Performance

Download XC2368E136F128LRAAKXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XC2368E136F128LRAAKXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

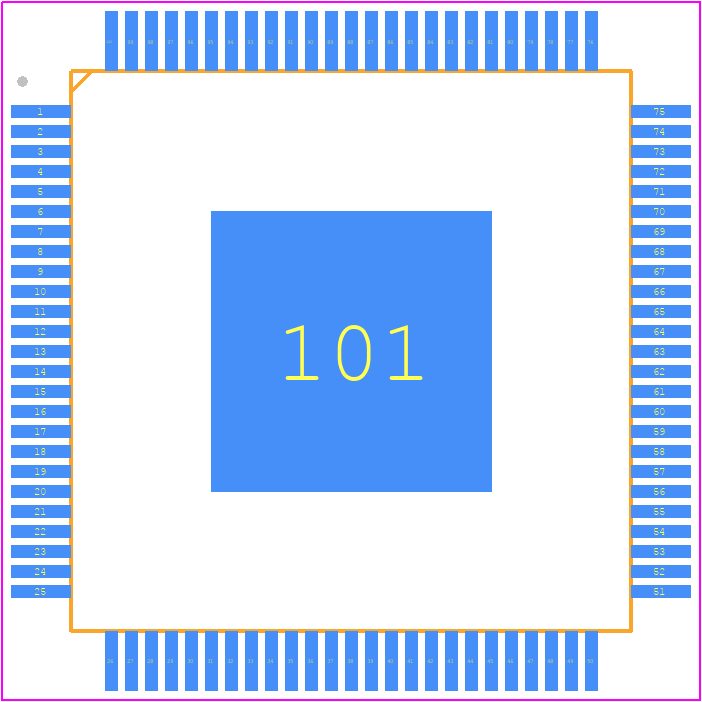

XC2368E136F128LRAAKXUMA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-100-11
click to zoom
3D Models
XC2368E136F128LRAAKXUMA1 - Infineon - 3D model - Quad Flat Packages - PG-LQFP-100-11
click to zoom

XC2368E136F128LRAAKXUMA1 Details

  • Manufacturer Part Number:

    XC2368E136F128LRAAKXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC2368E136F128LRAAKXUMA1 Overview

Use the download button to access the XC2368E136F128LRAAKXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC236, or try a keyword search, such as Microcontrollers
