XC4VFX140-12FF1517C - AMD

XC4VFX140-12FF1517C Details

• Manufacturer Part Number:

  XC4VFX140-12FF1517C

• Part Life Cycle Code:

  Active

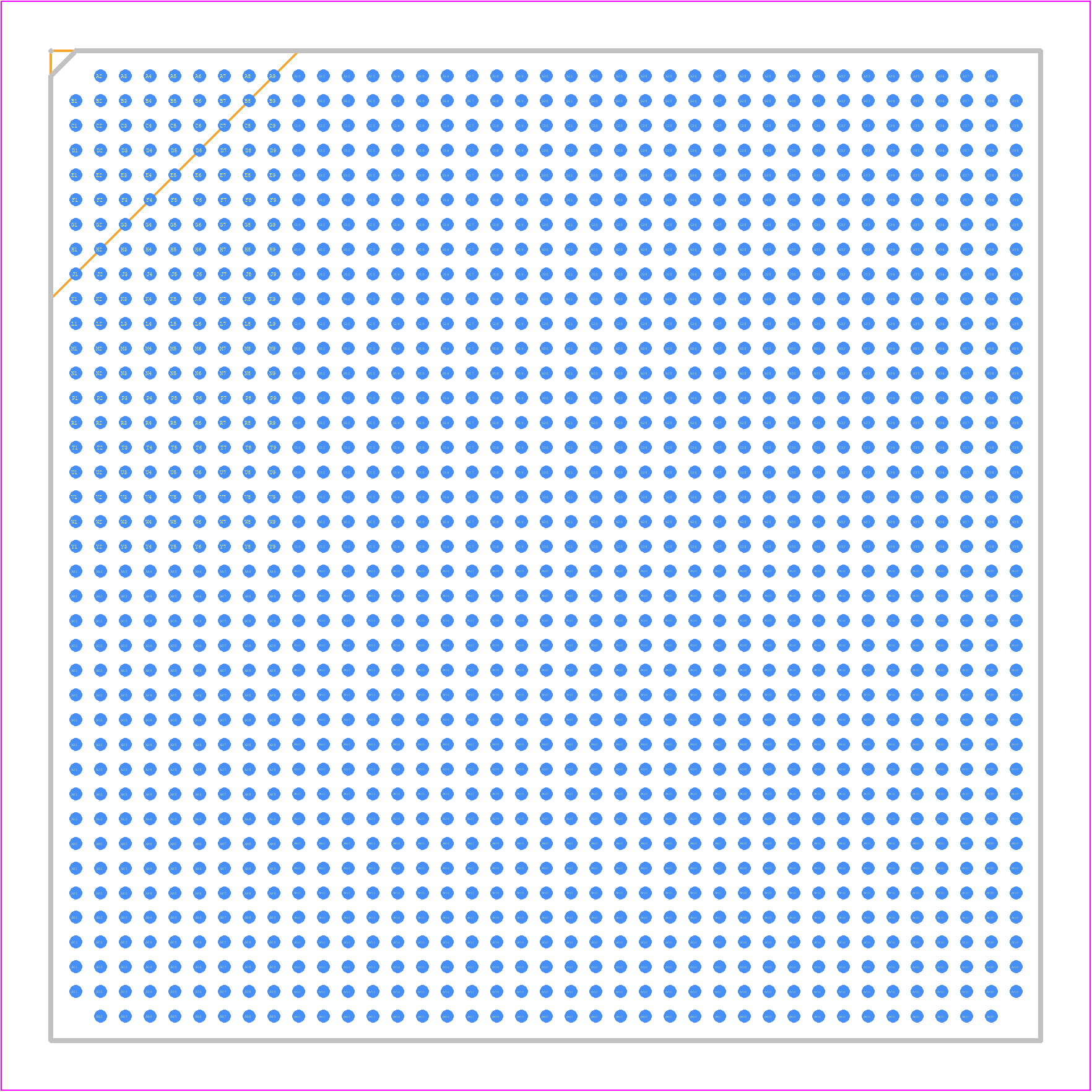

• Package Description:

  FBGA-1517

• HTS Code:

  8542.31.00.60

• Manufacturer:

  AMD

• YTEOL:

  5

• Clock Frequency-Max:

  1181 MHz

• JESD-30 Code:

  S-PBGA-B1517

• JESD-609 Code:

  e0

• Length:

  40 mm

• Moisture Sensitivity Level:

  4

• Number of CLBs:

  15792

• Number of Inputs:

  768

• Number of Logic Cells:

  142128

• Number of Outputs:

  768

• Number of Terminals:

  1517

• Operating Temperature-Max:

  85 °C

• Organization:

  15792 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1517,39X39,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  225

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS, 90 nm

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Lead (Sn63Pb37)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  40 mm
