The maximum operating frequency of the XC4VLX25-11FF668I is 330 MHz, but it can vary depending on the specific application and design.
You can implement a DDR3 memory interface using the FPGA's Memory Interface Generator (MIG) tool, which provides a pre-designed and verified IP core for DDR3 interfaces.
The power consumption of the XC4VLX25-11FF668I depends on the specific design and usage. However, according to the datasheet, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 1.5W to 3.5W depending on the clock frequency and activity.
Yes, the XC4VLX25-11FF668I has built-in transceivers that support high-speed serial interfaces like PCIe, SATA, and others. However, you'll need to use the FPGA's GTX transceivers and implement the necessary protocol logic using the FPGA's fabric.
You can use Xilinx's Vivado Design Suite, which provides a comprehensive development environment for designing, testing, and debugging FPGA designs. You can also use the FPGA's built-in logic analyzer and debug cores to monitor and debug your design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XC4VLX25-11FF668I Overview

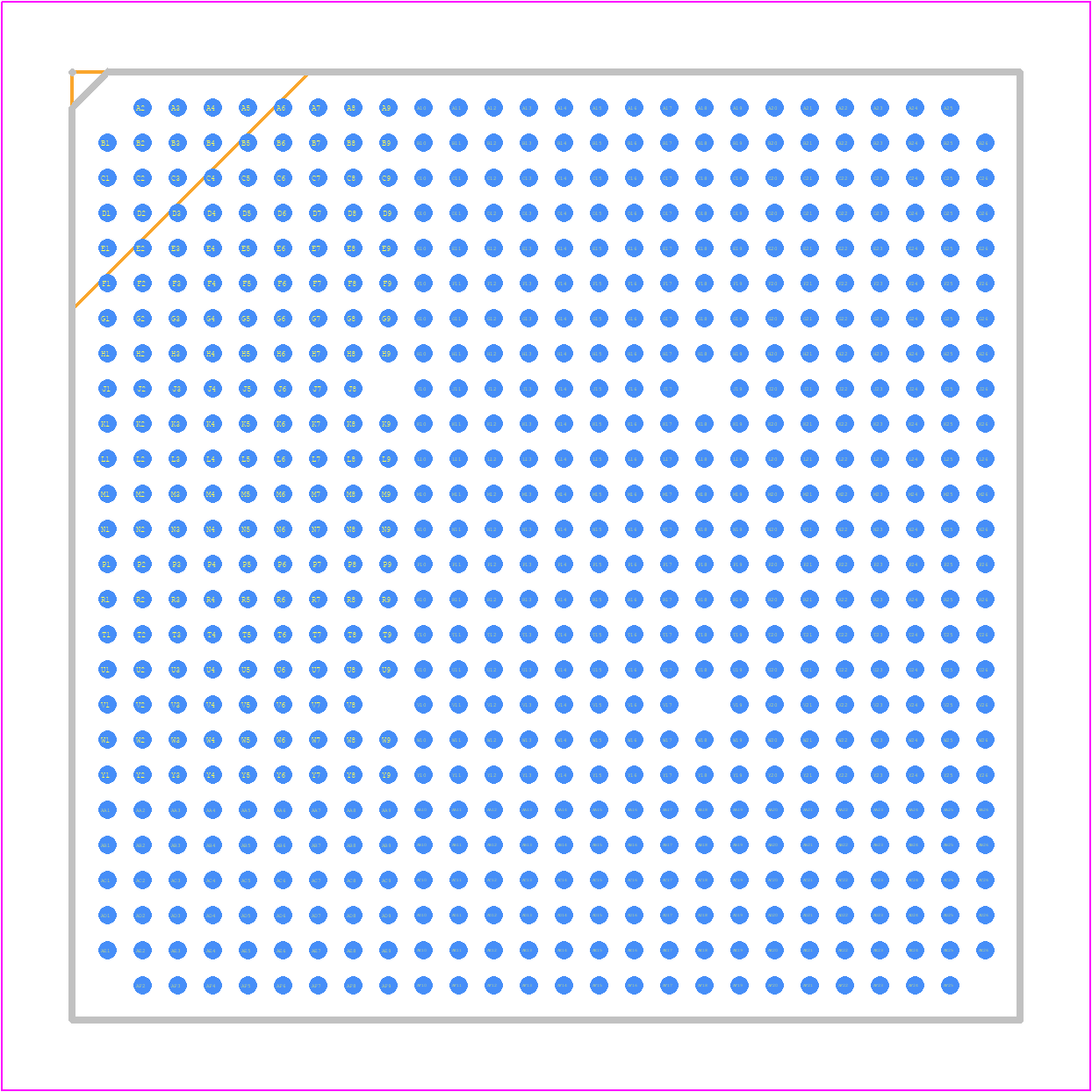

Use the download button to access the XC4VLX25-11FF668I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC4VL,
or try a keyword search, such as Field Programmable Gate Arrays
