The maximum operating frequency of the XC4VSX35-11FF668I is 350 MHz, but it can vary depending on the specific application and design.
You can implement a DDR2 memory interface using the FPGA's Memory Interface Generator (MIG) tool, which provides a pre-designed and verified interface. You'll need to follow the MIG user guide and Xilinx's DDR2 interface specification.
The power consumption of the XC4VSX35-11FF668I depends on the specific design, operating frequency, and voltage. However, according to the datasheet, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 2.5W to 12W depending on the design.
Yes, the XC4VSX35-11FF668I is capable of supporting high-speed serial interfaces like PCIe and SATA. However, you'll need to use the FPGA's high-speed transceivers and follow Xilinx's guidelines for implementing these interfaces.
You can use Xilinx's ChipScope Pro tool for debugging and testing your design. This tool allows you to insert logic analyzer cores into your design, capture and analyze signals, and perform other debugging tasks.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC4VSX35-11FF668I Overview

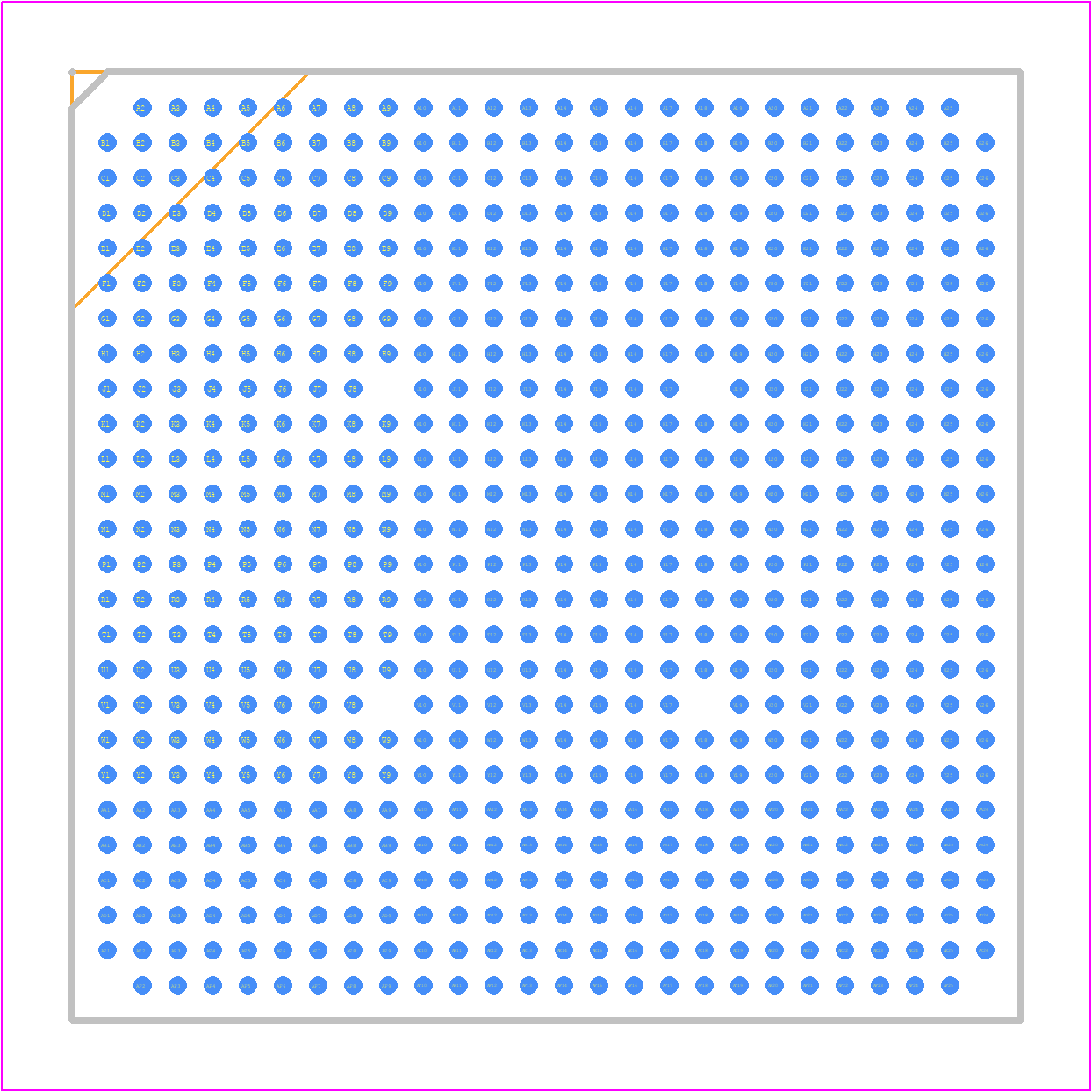

Use the download button to access the XC4VSX35-11FF668I schematic symbol, PCB footprint, and 3D model.
