XC5A-3282-1 - OMRON Electronics

Description: DIN-Style Twin-Contact Connectors, Double-Row Plugs, DIN Style 1, Right-Angle DIP Terminals, 32 Contacts

Download XC5A-3282-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

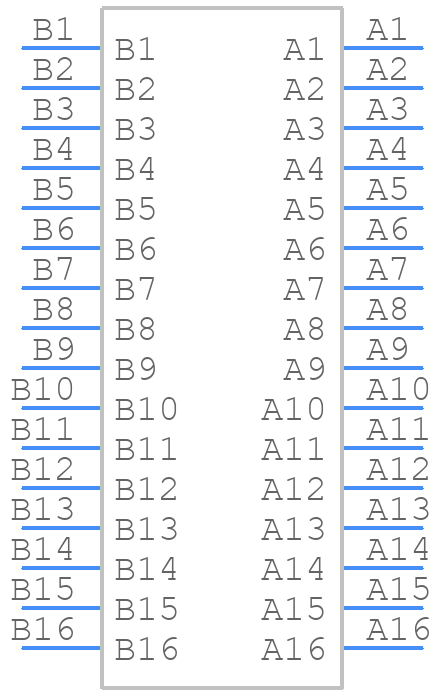

XC5A-3282-1 - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints

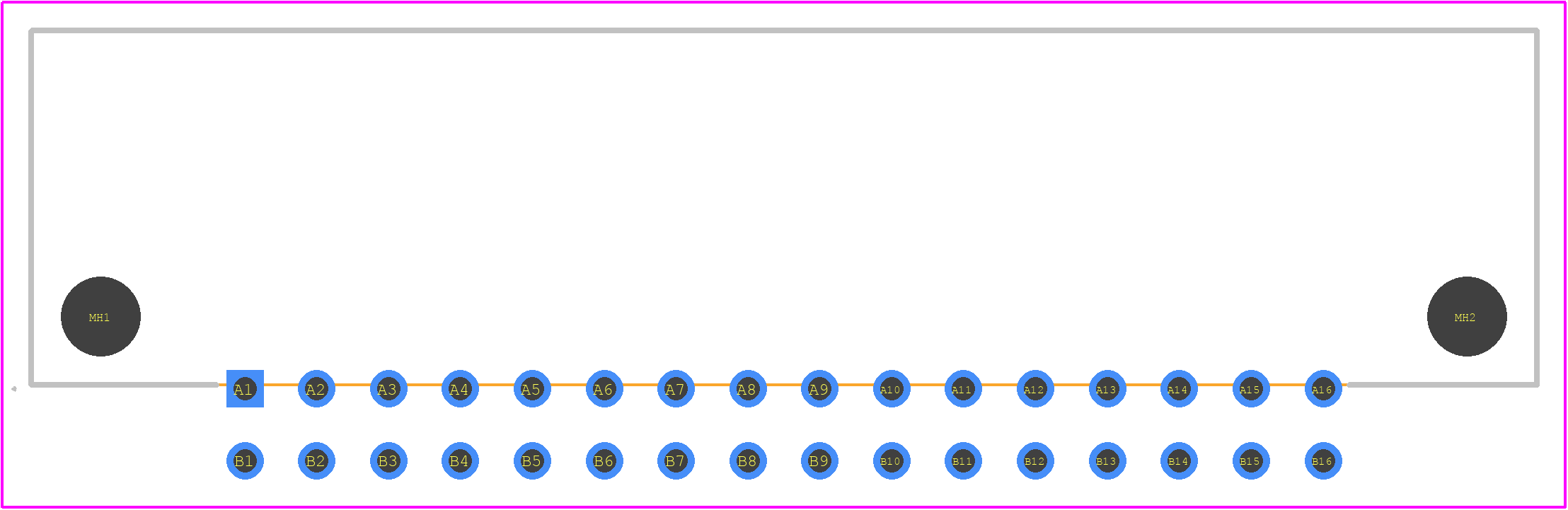

XC5A-3282-1 - OMRON Electronics PCB footprint - Other - Other - XC5A-3282-1-1
click to zoom
3D Models
XC5A-3282-1 - OMRON Electronics - 3D model - Other - XC5A-3282-1-1
click to zoom

XC5A-3282-1 Details

  • Manufacturer Part Number:

    XC5A-3282-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    GOLD (16)

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • JESD-609 Code:

    e3

XC5A-3282-1 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for XC5A-3282-1 is -40°C to 125°C. However, it's essential to follow the storage guidelines provided by OMRON Corporation to ensure the component's reliability and performance.
  • While XC5A-3282-1 is designed to operate in a wide range of temperatures, it's not recommended to use it in extremely humid environments. OMRON Corporation recommends operating the component in an environment with a relative humidity of 60% or less to prevent moisture-related issues.
  • The maximum allowable voltage for XC5A-3282-1 is 35V. Exceeding this voltage may damage the component or affect its performance. It's essential to follow the recommended operating voltage range specified in the datasheet to ensure the component's reliability.
  • XC5A-3282-1 is designed to operate in environments with moderate vibration levels. However, it's recommended to follow OMRON Corporation's guidelines for vibration testing and ensure that the component is properly mounted and secured to prevent damage or malfunction.
  • The lead time for XC5A-3282-1 may vary depending on the region, distributor, and availability. It's recommended to check with authorized distributors or OMRON Corporation's website for the latest lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC5A-3282-1 Overview

Use the download button to access the XC5A-3282-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC5A-, or try a keyword search, such as Headers and Edge Type Connectors
