XC5A-4422 - OMRON Electronics

Description: DIN 41612 Connectors DIN Connector

Download XC5A-4422 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

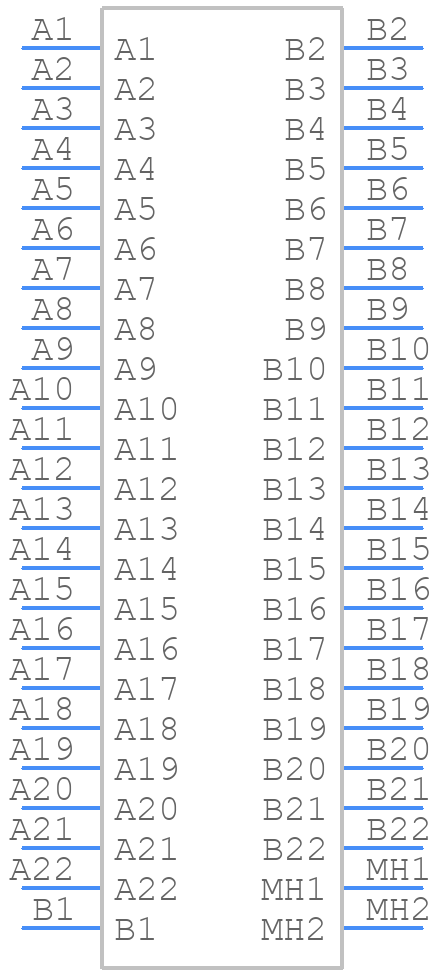

XC5A-4422 - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints
XC5A-4422 - OMRON Electronics PCB footprint - Other - Other - XC5A-4482-1A
click to zoom
3D Models
XC5A-4422 - OMRON Electronics - 3D model - Other - XC5A-4482-1A
click to zoom

XC5A-4422 Details

  • Manufacturer Part Number:

    XC5A-4422

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    GOLD (16)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • JESD-609 Code:

    e3
