Omron recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
Omron recommends following the recommended PCB layout and thermal management guidelines. Additionally, using a conformal coating, potting, or encapsulation can help protect the device from vibration and shock. It's also important to ensure the device is properly secured to the PCB and the PCB is securely fastened to the system.
Omron recommends a peak reflow temperature of 260°C (500°F) with a dwell time of 30 seconds to 1 minute. The recommended soldering process is a reflow soldering process with a nitrogen atmosphere. Hand soldering is not recommended.
Omron recommends following a systematic troubleshooting approach, starting with verifying the power supply and input signals. Check the device's output signals using an oscilloscope or logic analyzer. Verify the sensor input signals and ensure proper sensor alignment and installation. Consult the datasheet and application notes for specific troubleshooting guidelines.
The XC5A-5022 is designed for industrial applications and can operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F). Ensure the device is used in a safe and controlled environment, avoiding exposure to moisture, dust, and extreme temperatures. Follow proper safety precautions when handling the device, such as wearing anti-static wrist straps and using an anti-static mat.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC5A-5022 Overview

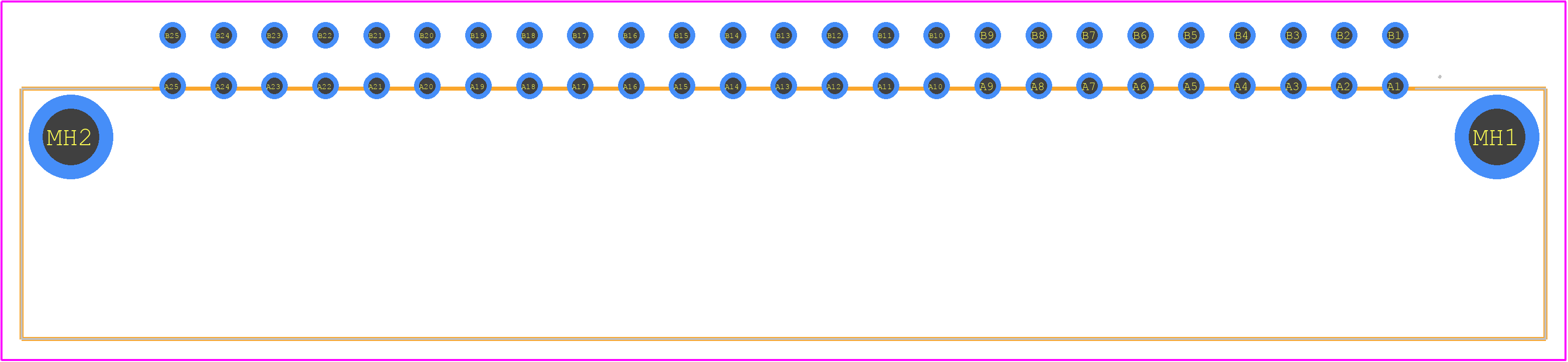

Use the download button to access the XC5A-5022 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC5A-,
or try a keyword search, such as Headers and Edge Type Connectors
