XC5B-3231-0 - OMRON Electronics

Description: DIN-Style Twin-Contact Connectors, Double-Row Sockets, DIN-Style Compatible, Straight DIP Terminals, 32 Contacts

Download XC5B-3231-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

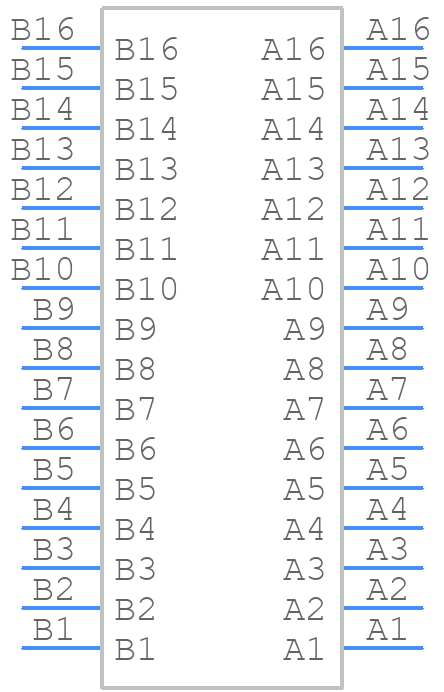

XC5B-3231-0 - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints

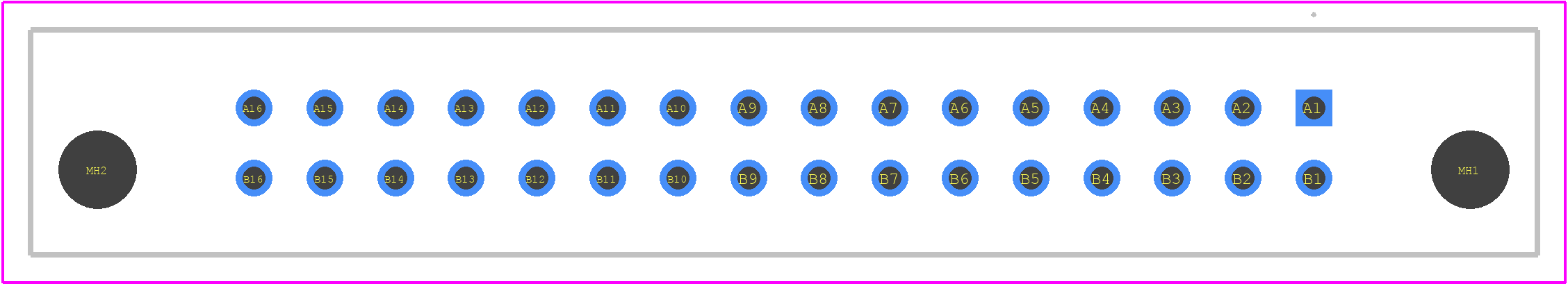

XC5B-3231-0 - OMRON Electronics PCB footprint - Other - Other - XC5B-3231-0-1
click to zoom
3D Models
XC5B-3231-0 - OMRON Electronics - 3D model - Other - XC5B-3231-0-1
click to zoom

XC5B-3231-0 Details

  • Manufacturer Part Number:

    XC5B-3231-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    GOLD (6)

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    PHOSPHOR BRONZE

  • JESD-609 Code:

    e3

XC5B-3231-0 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for XC5B-3231-0 is -20°C to 60°C (-4°F to 140°F).
  • Yes, XC5B-3231-0 is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity levels and take necessary precautions to prevent moisture ingress.
  • The maximum operating frequency for XC5B-3231-0 is 100 kHz. However, it's recommended to consult the datasheet and application notes for specific frequency-related guidelines.
  • Yes, XC5B-3231-0 is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for soldering temperatures and profiles to ensure reliable operation.
  • The typical response time for XC5B-3231-0 is around 1 ms. However, this may vary depending on the specific application and operating conditions.
