XC5D-9621 - OMRON Electronics

Description: DIN Twin-Contact Connectors, Triple-Row Sockets, DIN C-Type, Straight DIP Terminals, 96 Contacts

Download XC5D-9621 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

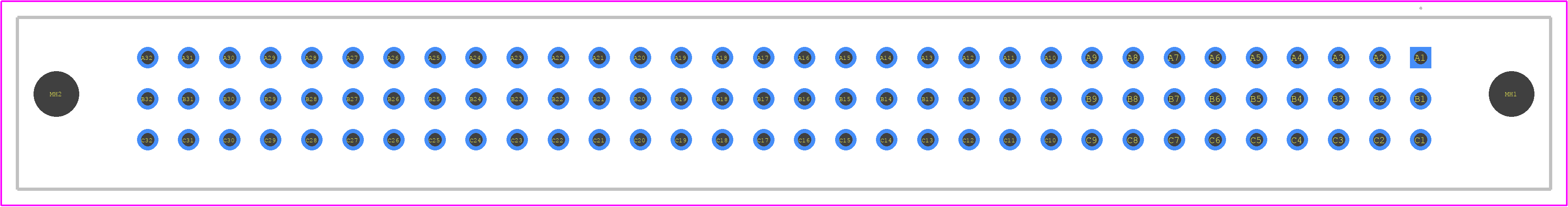

XC5D-9621 - OMRON Electronics PCB footprint - Other - Other - XC5D-9621-3
click to zoom
3D Models
XC5D-9621 - OMRON Electronics  - 3D model - Other - XC5D-9621-3
click to zoom

XC5D-9621 Details

  • Manufacturer Part Number:

    XC5D-9621

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    0.417 inch

  • Body Depth:

    0.453 inch

  • Body Length:

    3.732 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    200 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    0.59 N

  • Insulation Resistance:

    1000000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B,C

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    15.74u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    CSA; UL

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.15 N

XC5D-9621 Frequently Asked Questions (FAQs)

  • Omron recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
  • To ensure reliable communication, use a shielded cable, and implement proper grounding and shielding techniques. Also, consider using a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, implement error-checking and correction mechanisms in your communication protocol.
  • The maximum cable length for the XC5D-9621's serial communication interface depends on the baud rate and cable quality. As a general guideline, Omron recommends a maximum cable length of 10 meters at 9600 bps, 5 meters at 19200 bps, and 1 meter at 115200 bps. However, it's recommended to test the specific setup to determine the maximum cable length.
  • The XC5D-9621's POR and BOD features are designed to ensure reliable operation during power-up and power-down sequences. To handle these features, ensure that the power supply voltage ramps up and down slowly (typically 10-50 ms) to allow the device to properly reset and recover. Additionally, consider adding external circuitry to filter out power supply noise and glitches.
  • To prevent damage, store the XC5D-9621 in its original packaging or an anti-static bag in a dry, cool place. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures. When handling the device, use anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.
