XC5E-2021 - OMRON Electronics

Description: DIN Twin-Contact Connectors, Double-Row Plugs, DIN Q-Type, Straight DIP Terminals, 20 Contacts

Download XC5E-2021 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

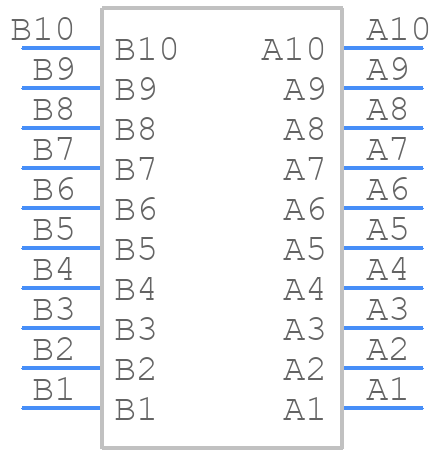

XC5E-2021 - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints

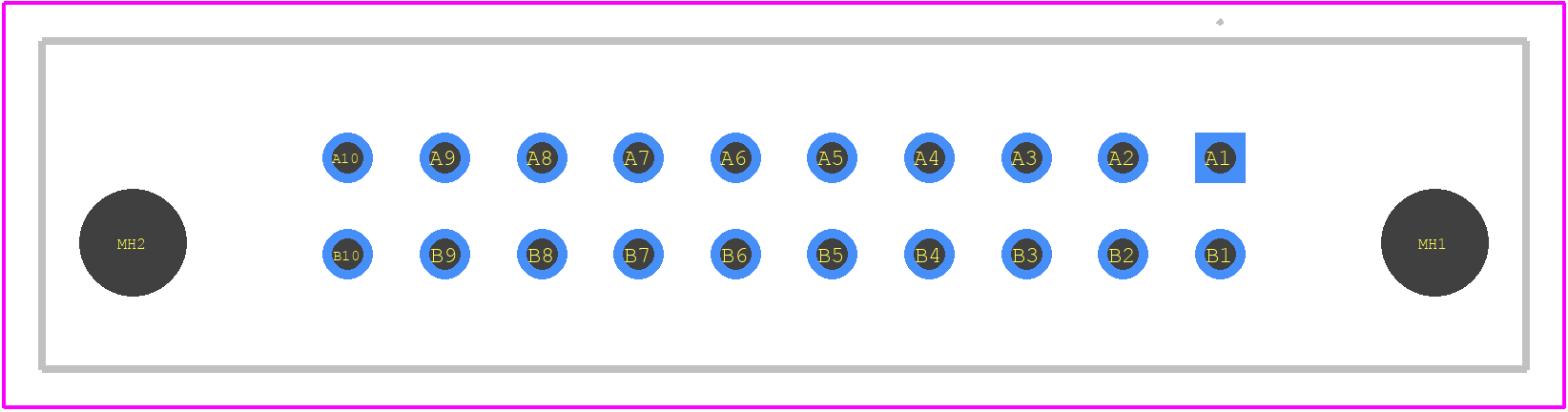

XC5E-2021 - OMRON Electronics PCB footprint - Other - Other - XC5E-2021-1
click to zoom
3D Models
XC5E-2021 - OMRON Electronics - 3D model - Other - XC5E-2021-1
click to zoom

XC5E-2021 Details

  • Manufacturer Part Number:

    XC5E-2021

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    GOLD (16)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • JESD-609 Code:

    e3

XC5E-2021 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for XC5E-2021 is -40°C to 125°C.
  • Yes, XC5E-2021 is designed to operate in humid environments, but it's recommended to follow the guidelines for humidity and temperature specified in the datasheet to ensure reliable operation.
  • The maximum operating frequency of XC5E-2021 is 100 kHz.
  • Yes, XC5E-2021 is compatible with 5V logic, but it's recommended to use a voltage regulator to ensure a stable 5V supply.
  • Yes, XC5E-2021 is designed to operate in high-vibration environments, but it's recommended to follow the guidelines for vibration and shock specified in the datasheet to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC5E-2021 Overview

Use the download button to access the XC5E-2021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC5E-, or try a keyword search, such as Headers and Edge Type Connectors
