XC5E-3221 - OMRON Electronics

Description: Conn DIN 41612 PL 32 POS 2.54mm Solder ST Thru-Hole

Download XC5E-3221 Model

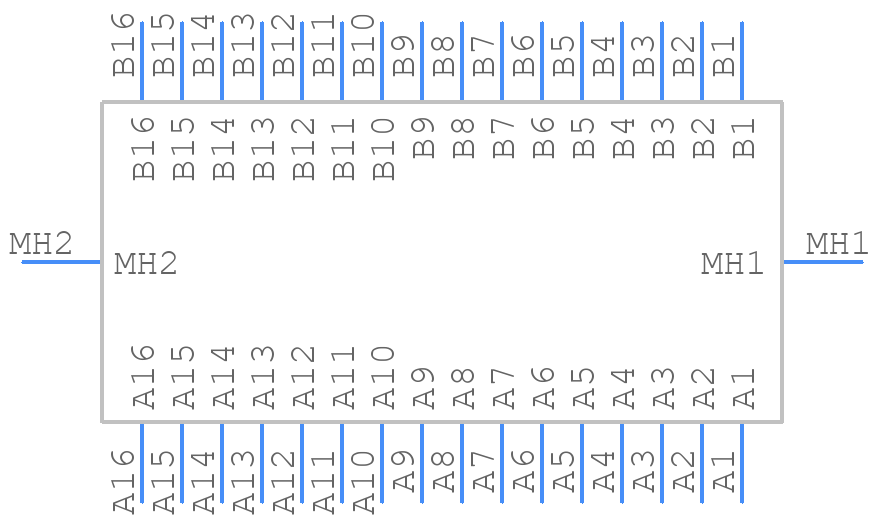

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

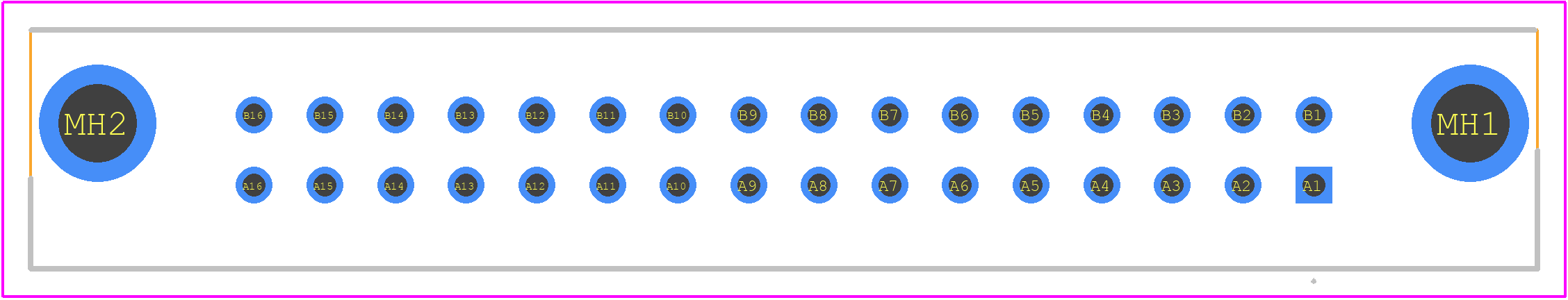

XC5E-3221 - OMRON Electronics PCB footprint - Other - Other - XC5E-3221-1
click to zoom
3D Models
XC5E-3221 - OMRON Electronics  - 3D model - Other - XC5E-3221-1
click to zoom

XC5E-3221 Details

  • Manufacturer Part Number:

    XC5E-3221

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL, CONTACT FINISH MATING: GOLD OVER NICKEL, CONTACT FINISH TERMINATION: TIN (79)

  • Board Mounting Option:

    HOLE .099-.111

  • Body Breadth:

    0.339 inch

  • Body Depth:

    0.457 inch

  • Body Length:

    2.13 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    GOLD (16)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    200 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    0.59 N

  • Insulation Resistance:

    1000000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPAL MATING PARTS AVAILBLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    16u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    CSA; DIN

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.15 N

XC5E-3221 Frequently Asked Questions (FAQs)

  • Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal plane on the PCB.
  • To ensure reliable communication, Omron recommends using a differential signal transmission line with a characteristic impedance of 100 ohms, and terminating the lines with 50 ohm resistors. Additionally, the clock signal should be routed close to the ground plane to minimize noise.
  • The maximum operating temperature range for XC5E-3221 is -40°C to 125°C. However, Omron recommends operating the device within the range of -20°C to 85°C for optimal performance and reliability.
  • Omron recommends using ESD protection devices such as TVS diodes or ESD arrays on the input/output lines to protect the XC5E-3221 from electrostatic discharge. Additionally, handling the device with an anti-static wrist strap or mat is recommended.
  • Omron recommends powering up the VCC supply first, followed by the VDD supply. The power-up sequence should be controlled to ensure that the VCC supply is stable before the VDD supply is applied.
