- Part Number XC5E-3223
- Manufacturer OMRON Electronics
- Pin Count 34
- Part Category Connector
- Package Category Other

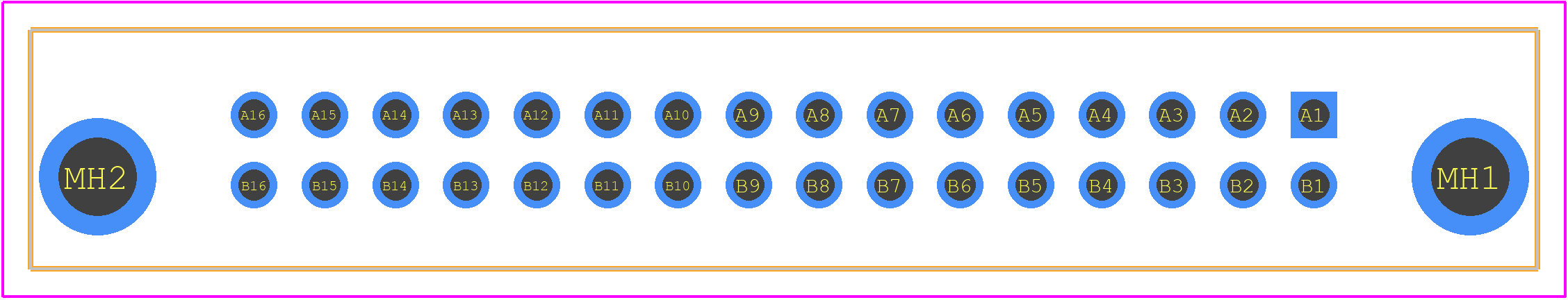

- Footprint Name Other - XC5E-3223-1
- Released Date Apr 8, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XC5E-3223 Details
-
Manufacturer Part Number:
XC5E-3223
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
OMRON Electronic Components
-
YTEOL:
0
-
Connector Type:
BOARD EURO CONNECTOR
-
Contact Finish Mating:
GOLD (16)
-
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Trust Checks
Expert Contribution
System Verified
Community Approved
XC5E-3223 Overview

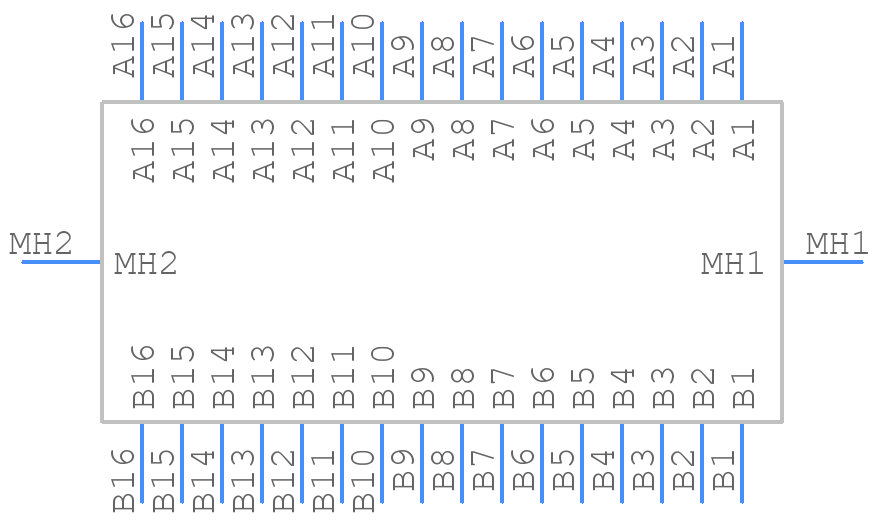

Use the download button to access the XC5E-3223 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC5E-,
or try a keyword search, such as Headers and Edge Type Connectors
