XC5H-4822 - OMRON Electronics

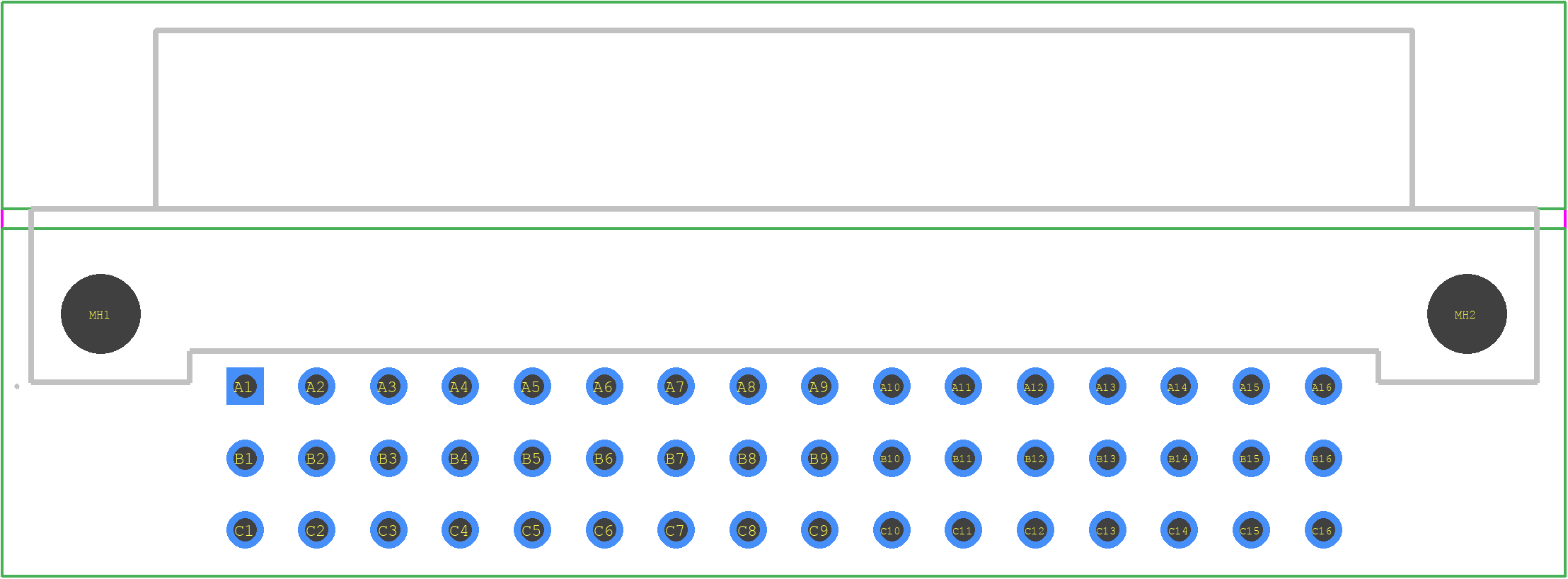

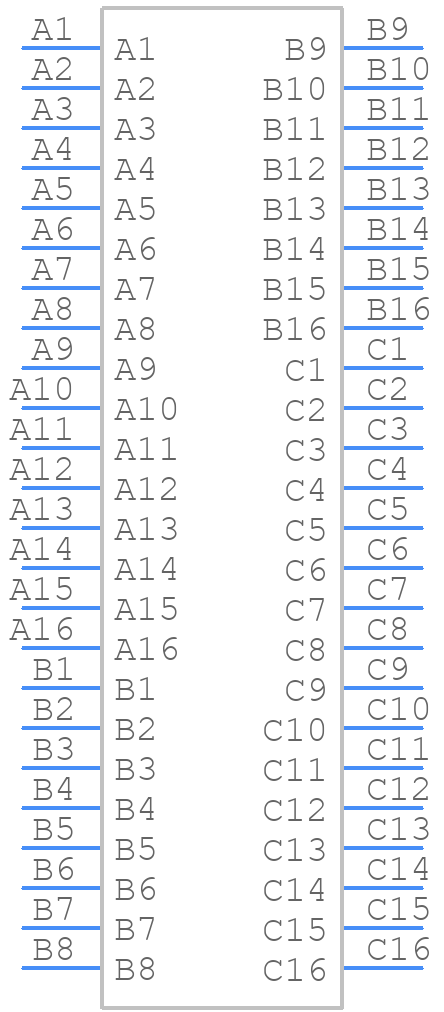

XC5H-4822 Details

• Manufacturer Part Number:

  XC5H-4822

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  111 Weeks

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  8

• Body Breadth:

  0.417 inch

• Body Depth:

  0.694 inch

• Body Length:

  2.094 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  GOLD (16)

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  200 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.59 N

• Insulation Resistance:

  1000000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,B,C

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  15.74u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  2 A

• Reference Standard:

  CSA; UL

• Terminal Length:

  0.114 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  48

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.15 N
