XC5VLX110-1FF1153I - AMD

XC5VLX110-1FF1153I Details

• Manufacturer Part Number:

  XC5VLX110-1FF1153I

• Part Life Cycle Code:

  Active

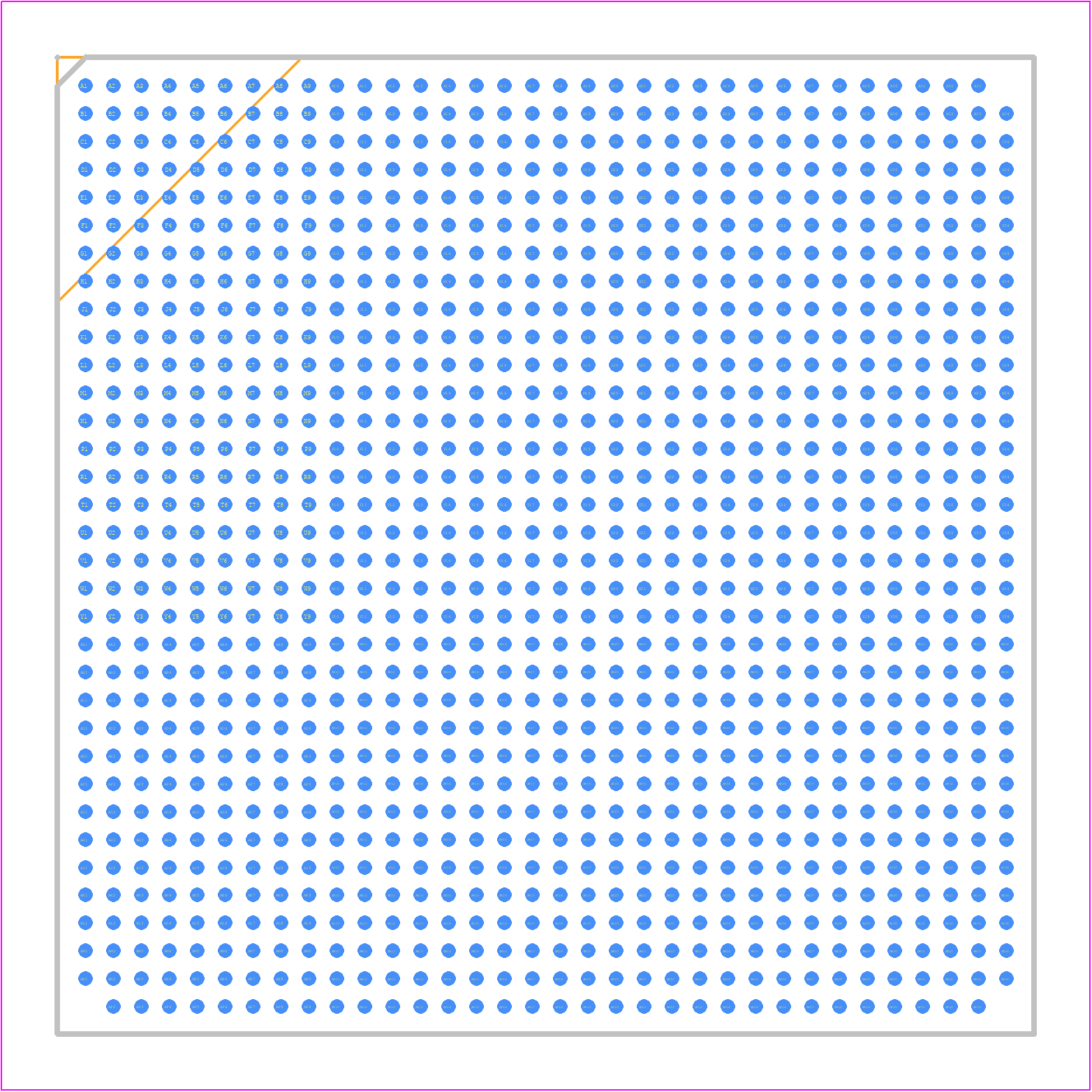

• Package Description:

  BGA-1153

• HTS Code:

  8542.31.00.60

• Manufacturer:

  AMD

• YTEOL:

  6.1

• Combinatorial Delay of a CLB-Max:

  0.9 ns

• JESD-30 Code:

  S-PBGA-B1153

• JESD-609 Code:

  e0

• Length:

  35 mm

• Moisture Sensitivity Level:

  4

• Number of CLBs:

  8640

• Number of Inputs:

  800

• Number of Logic Cells:

  110592

• Number of Outputs:

  800

• Number of Terminals:

  1153

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8640 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1153,34X34,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  225

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  65 nm

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn63Pb37)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  35 mm
