A good PCB layout for XC6192AA05ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC6192AA05ER-G output voltage, it is essential to use a suitable output capacitor with a low ESR value (less than 1 ohm) and a capacitance value of at least 10uF. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature for reliable operation of XC6192AA05ER-G is 85°C. However, it is recommended to derate the output current and input voltage to ensure reliable operation at high temperatures.
Yes, XC6192AA05ER-G is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing. However, it is essential to follow proper design and layout guidelines to ensure reliable operation.
To troubleshoot issues with XC6192AA05ER-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, and ensure that the PCB layout is correct.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6192AA05ER-G Overview

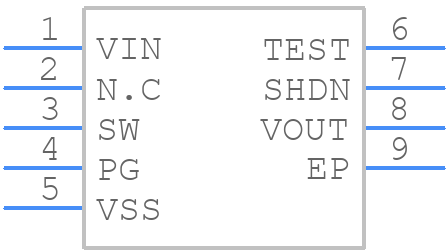

Use the download button to access the XC6192AA05ER-G schematic symbol, PCB footprint, and 3D model.
