Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. Keep the input and output traces as short as possible and avoid routing them near noise-sensitive areas. Refer to the Torex application note AN-104 for more detailed guidelines.
To ensure stability, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF ceramic capacitor with an ESR of 100mΩ or less is recommended. Additionally, ensure that the output voltage is within the specified range and the input voltage is stable.
The maximum ambient temperature for reliable operation of XC6193AA10ER-G is 85°C. However, the device can operate up to 105°C with derating. Refer to the datasheet for more information on thermal derating.
Yes, XC6193AA10ER-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard for automotive grade devices and has a high MTBF (Mean Time Between Failures) rating. However, ensure that you follow the recommended operating conditions and design guidelines to ensure reliable operation.
To troubleshoot issues with XC6193AA10ER-G, start by checking the input voltage, output voltage, and output current. Verify that the device is operating within the specified conditions and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Refer to the datasheet and application notes for more troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6193AA10ER-G Overview

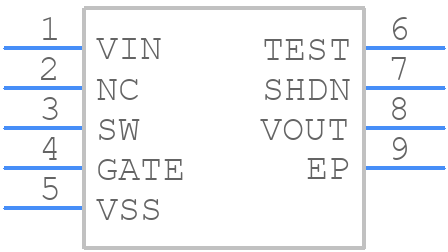

Use the download button to access the XC6193AA10ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC619,
or try a keyword search, such as Power Management Circuits
