XC6194AA10ER-G footprint, schematic symbol and 3D model by Torex

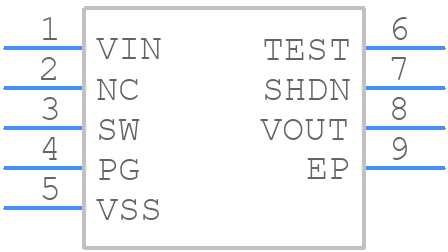

Symbol

click to zoom

PCB Footprints

XC6194AA10ER-G - Torex PCB footprint - Other - Other - XC6194BANNER-G

click to zoom

3D Models

XC6194AA10ER-G - Torex - 3D model - Other - XC6194BANNER-G

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XC6194AA10ER-G
Part Number XC6194AA10ER-G
Manufacturer Torex
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - XC6194BANNER-G
Released Date Jan 18, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

XC6194AA10ER-G Details

Manufacturer Part Number:
XC6194AA10ER-G
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
USP-8
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Date Of Intro:
2019-05-16
Manufacturer:
Torex Semiconductor LTD
YTEOL:
10
Additional Feature:
THERMAL SHUTDOWN:125C
Adjustable Threshold:
NO
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
S-PDSO-N8
Length:
2 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.08,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.33 mm
Supply Current-Max (Isup):
0.091 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
2 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
1.2
Time@Peak Reflow Temperature-Max (s):
10
Width:
2 mm

XC6194AA10ER-G Frequently Asked Questions (FAQs)

Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the feedback resistors should be placed close to the output pin.
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should be selected based on the output voltage and current requirements. A minimum output capacitance of 10uF is recommended, and the ESR should be less than 100mΩ.
The maximum ambient temperature for the XC6194AA10ER-G is 85°C. However, the device can operate up to 105°C with derating. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
Yes, the XC6194AA10ER-G is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress and vibration-induced failures.
The recommended input capacitor value for the XC6194AA10ER-G is 10uF to 22uF, with a voltage rating of 10V or higher. The input capacitor should be a low-ESR type, such as an X5R or X7R ceramic capacitor.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

XC6194AA10ER-G Overview

Use the download button to access the XC6194AA10ER-G schematic symbol, PCB footprint, and 3D model.
