XC6220B251PR-G - Torex

Description: LDO Voltage Regulators 1A High Speed LDO Regulator with "Green Operation"

Download XC6220B251PR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

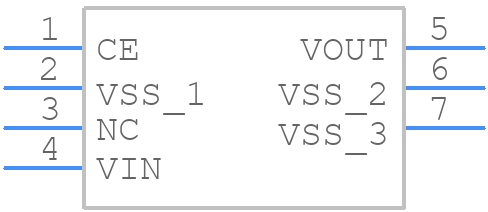

Symbol
XC6220B251PR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6220B251PR-G - Torex PCB footprint - Other - Other - XC6220B251PR-G-3
click to zoom
3D Models
XC6220B251PR-G - Torex - 3D model - Other - XC6220B251PR-G-3
click to zoom

XC6220B251PR-G Details

  • Manufacturer Part Number:

    XC6220B251PR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-89, 5 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    6.2

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.655 V

  • Dropout Voltage1-Nom:

    0.065 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max(%):

    0.045%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOF

  • Package Equivalence Code:

    TO-243

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    1.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tolerance-Max:

    2%

  • Width:

    2.5 mm

XC6220B251PR-G Frequently Asked Questions (FAQs)

  • Torex recommends a compact PCB layout with minimal trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors as close as possible to the IC pins.
  • To ensure stable operation in high-temperature environments, it is essential to follow proper thermal design guidelines. Ensure good heat dissipation by using a heat sink or thermal pad, and keep the junction temperature (Tj) below 125°C. Also, consider derating the output current and voltage according to the temperature derating curve provided in the datasheet.
  • Torex recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 1uF to 10uF for the input capacitor (CIN). The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • Yes, XC6220B251PR-G is suitable for battery-powered devices due to its low quiescent current (IQ) and low dropout voltage (VDO). However, ensure that the input voltage is within the recommended range (2.5V to 6.0V) and consider the battery's discharge characteristics to ensure reliable operation.
  • To troubleshoot XC6220B251PR-G, first check the input voltage and ensure it is within the recommended range. Verify that the output capacitor is properly connected and meets the recommended specifications. Also, check for any noise or ripple on the input and output lines, and ensure that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
