Torex provides a recommended PCB layout in their application note AN042, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure stability and reliability, follow the recommended operating conditions, decoupling, and layout guidelines in the datasheet and application notes. Additionally, perform thorough testing and validation of your design to ensure it meets the required specifications.
The maximum allowable voltage drop across the XC6221A452MR-G is typically limited by the input voltage range and the output voltage regulation. According to the datasheet, the maximum input voltage is 6.5V, and the output voltage regulation is ±2%. Therefore, the maximum allowable voltage drop would be approximately 0.13V (2% of 6.5V).
The XC6221A452MR-G is rated for operation up to 105°C (ambient temperature). However, it's essential to consider the device's power dissipation, thermal resistance, and derating factors when operating in high-temperature environments. Consult the datasheet and application notes for guidance on thermal management and derating.
To troubleshoot issues with the XC6221A452MR-G, follow a systematic approach: 1) Verify the input voltage and current, 2) Check the output voltage and current, 3) Verify the enable pin and shutdown functionality, 4) Check for thermal issues, and 5) Consult the datasheet, application notes, and Torex's technical support resources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6221A452MR-G Overview

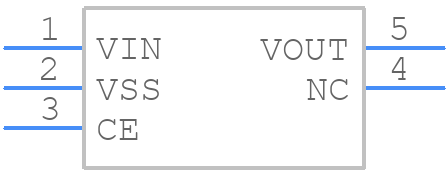

Use the download button to access the XC6221A452MR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC622,
or try a keyword search, such as Linear Regulator ICs
